How to Connect Ethernet to Mac and PC [Worked]

With a local network, you can share vast amounts of data over a high-speed connection by just yanking or dropping them into a shared folder. An Ethernet network carves out the fastest and simplest connection.

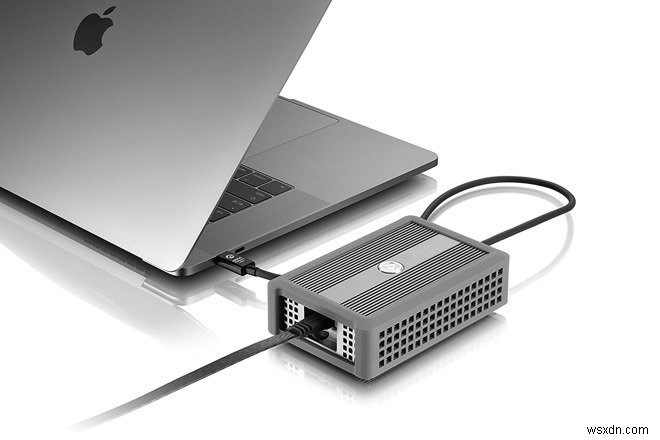

Many Macs lack an Ethernet port but feature a USB or Thunderbolt port, or even both. Either buy Belkin USB-C to Gigabit Ethernet Adapter or an Apple Thunderbolt to Gigabyte Ethernet Adapter. If you want to connect to a router, tool up with an Ethernet cable (also referred to as CAT 5 cable and RJ-45 cable).

Let’s learn how to connect Ethernet to Mac in this article together.

Part 1. Connect Mac to the Internet with or without Ethernet

Connecting Mac to a Wired Ethernet Internet Connection

How to connect ethernet to Mac? Does Ethernet connect automatically Mac?

As mentioned earlier, some older versions of Mac integrate an Ethernet port while novel models need a Thunderbolt-to-Ethernet and USB-to-Ethernet adapter. After you’ve connected the Ethernet cable to the laptop, pair the other tip into the modem or router. In most scenarios, you’ll be connected automatically. Otherwise, follow these steps:

1. Click on the Apple menu and choose System Preferences> Network.
2. Choose the Ethernet connection option in the menu on your left, remembering it may have a name derived from the adapter paired.
3. Tap the Configure IPv4 prompt menu and select the ISP’s suggested configuration type.
4. Go to Advanced, click on DNS. Next, add your DNS server with the + button. Fill in your IP address for ISP’s DNS server.
5. Click on Apply to activate the configurations.

How to Make a Hard-wired Connection without an Ethernet Port

You can set up connectivity without a router for enhanced reliability, stability and consistency. It runs like a streak of lightning with or without Wi-Fi and Ethernet.

1. Connect the Apple Ethernet adapter via the USB or Thunderbolt port.
2. Next, put the Ethernet cable in the Internet connectivity part as its source along with the Mac Ethernet adapter at the other.
3. Now, head to the Apple Menu and tap on System Preferences.
4. Under System Preferences, hit Network.
5. A message should pop up “New Interface Detected”. Click on OK.
6. Click on Apply to command this setting and remember the network connection.
7. To bolster the security of your network, click Thunderbolt Ethernet Interface> Advanced.
8. Now you can tinker different settings like automatic or manual connection, speed, and a range of other parameters.

Part 2. How to Synchronize PC and Mac Simultaneously over An Ethernet Network

Before you learn about how to connect Ethernet to Mac to synchronize PC and Mac simultaneously, there are something you should know about Ethernet. With an Ethernet network, you can create a fast and simple connection between a Mac and a PC without a router. The high-speed connection can hit 10Gbps. The operating systems of the platforms allow transmission via Ethernet and peg no restrictions on pairing with trademarked systems.

1. Plug one tip of an Ethernet cable into the PC and the other one in your Mac. Toggle on the two machines.
2. Direct the cursor to the top-right corner of the Start menu in Windows, shift the cursor downward and click on “Settings”. Click on the “Network” symbol mimicking a cable inserted into a computer.

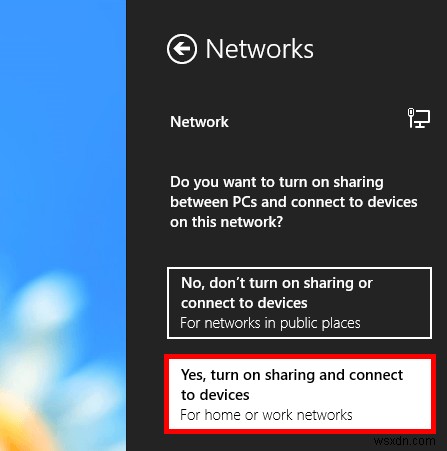

3. Right-click Ethernet network, and hit “Turn Sharing On” and then “Yes, Turn On Sharing And Connect To Devices”.
4. Right-click the backdrop of your Start screen to throw up the taskbar, and hit “All Apps”. Right-click “Computer” and choose “Properties” under the dropdown menu. Jot down the Workgroup title and computer name for reference when pairing your PC from the Mac.
5. Hi, the “Finder” icon in the Dock of the Mac. Under the Finder window, click on “Go”, “Connect to Server” and “Browse”. Choose the title of the PC under the available connections and hit “Connect As”. Fill in the Workgroup title, password and username once prompted.
6. Tap “Remember This Password in My Keychain” for trouble-free connections later.

Tip:

Invoke the Share tab under Windows File Explorer to swap files or folders across synchronized computers. Choose a file or folder to send, and hit the “Share” tab along with the Workgroup name under the “Share With” region.
