Create Date Hierarchy in Excel Pivot Table (with Easy Steps)

Excel is the most widely used tool for dealing with massive datasets. We can perform myriads of tasks of multiple dimensions in Excel. Excel is useful to create a date hierarchy. We can use PivotTable to do that. In this article, I will show you how to create date hierarchy in Excel Pivot Table with easy steps.

Download this dataset and practice while going through this article.

7 Quick Steps to Create Date Hierarchy in Excel Pivot Table

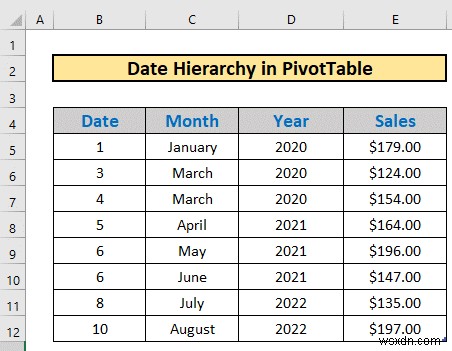

This is the dataset for today’s article. We have some dates and amount of sales on each day. I will use this dataset to illustrate how to create date hierarchy in Excel Pivot Table.

Create Date Hierarchy in Excel Pivot Table (with Easy Steps)

Step 1: Add Dataset to Data Model

The first task is to add dataset to the Data Model. To do so,

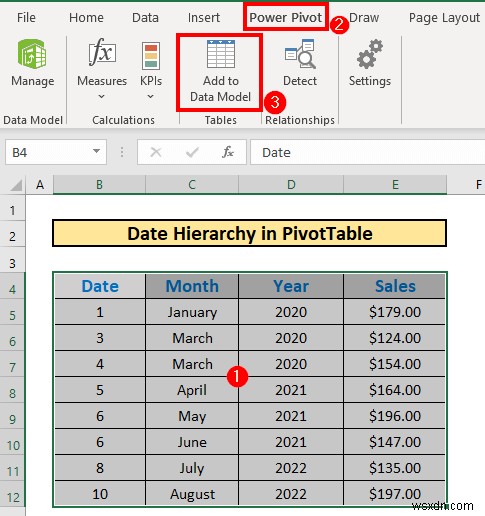

  • Select the entire dataset B4:E12.
  • Then, go to the Power Pivot
  • After that, select Add to Data Model.

Create Date Hierarchy in Excel Pivot Table (with Easy Steps)

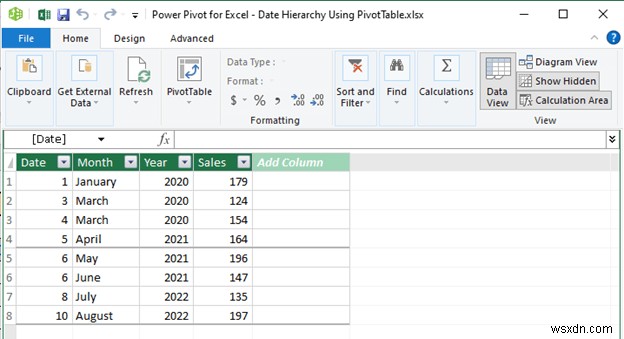

  • Excel will add the dataset to the data model.

Create Date Hierarchy in Excel Pivot Table (with Easy Steps)

Step 2: Activate Diagram View

The next step is to activate Diagram View. To do so,

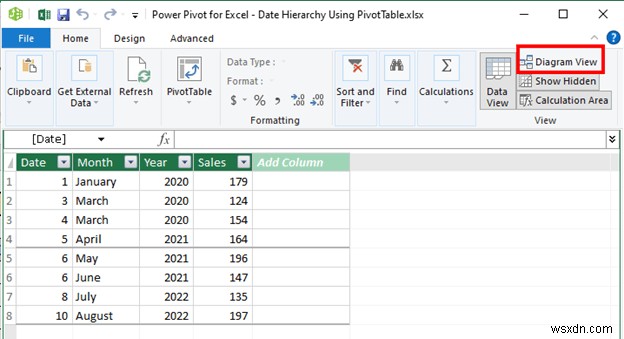

  • Select Diagram View from the Data Model

Create Date Hierarchy in Excel Pivot Table (with Easy Steps)

  • Excel will activate the Diagram View.

Create Date Hierarchy in Excel Pivot Table (with Easy Steps)

Step 3: Select Column to Create Hierarchy

Now, I will illustrate how to select a column and create a hierarchy. To do so,

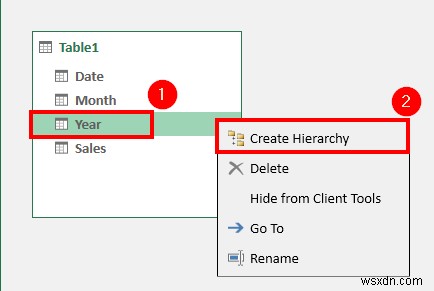

  • Select the column Year.
  • Then, right-click your mouse.
  • After that, select Create Hierarchy.

Create Date Hierarchy in Excel Pivot Table (with Easy Steps)

  • Excel will create a hierarchy.
  • Rename as you wish. I am going to call it Date Hierarchy.

Create Date Hierarchy in Excel Pivot Table (with Easy Steps)

Step 4: Create Child Hierarchy Level

Now, we need to create a child hierarchy level. The Month and Date column will be the child levels in this case.

  • Drag them one by one within the parent hierarchy level.

Create Date Hierarchy in Excel Pivot Table (with Easy Steps)

Read More: How to Create Multi Level Hierarchy in Excel (2 Easy Ways)

Step 5: Create PivotTable

The next step is to create a pivot table with the dataset. To do so,

  • Select PivotTable.

Create Date Hierarchy in Excel Pivot Table (with Easy Steps)

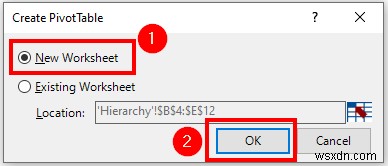

  • Create PivotTable box will appear. Select New Worksheet.
  • Then, press OK.

Create Date Hierarchy in Excel Pivot Table (with Easy Steps)

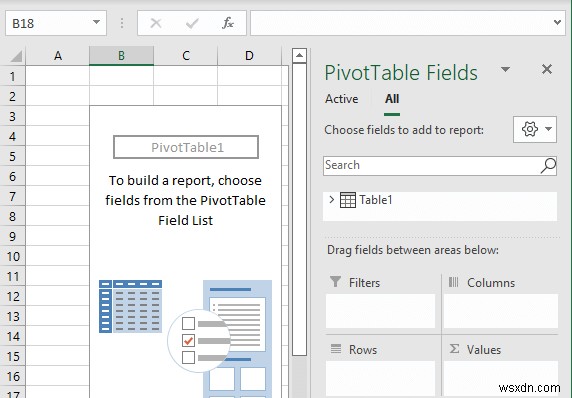

  • Excel will create a PivotTable.

Create Date Hierarchy in Excel Pivot Table (with Easy Steps)

Step 6: Edit PivotTable Fields

Our final step is to edit the PivotTable Fields. I will show you how to do so.

  • Drag Date Hierarchy to Rows level and Sales to Values. You will find the Sales column in the More Fields

Create Date Hierarchy in Excel Pivot Table (with Easy Steps)

  • This will be the output. To see the hierarchy, click the + icon.

Create Date Hierarchy in Excel Pivot Table (with Easy Steps)

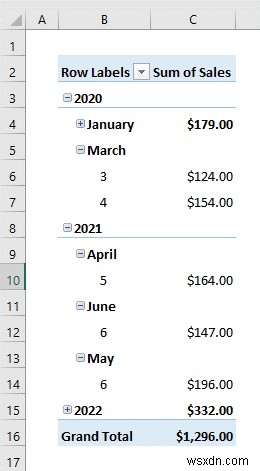

  • Excel will show you the hierarchy.

Create Date Hierarchy in Excel Pivot Table (with Easy Steps)

Step 7: Format PivotTable

Finally, format the PivotTable the way you want. I am going to format it this way.

Create Date Hierarchy in Excel Pivot Table (with Easy Steps)

Read More: How to Create Hierarchy in Excel Pivot Table (with Easy Steps)

Things to Remember

  • You must activate the Power Pivot add-in for this task.
  • You can change the positions of the columns in the hierarchy.

Conclusion

In this article, I have explained how to create date hierarchy in Excel Pivot Table. I hope it helps everyone. If you have any suggestions, ideas, or feedback, please feel free to comment below. Please visit ExcelDemy for more useful articles like this.
