Build Advanced Excel Dashboards with Power Query, Power Pivot & VBA – From Data to Insight

In this tutorial, we will show how to build advanced Excel dashboards using Power Query, Power Pivot, and VBA.

Let’s create a sales dashboard for a fictional retail company that sells products across multiple regions. We’ll work with a dataset containing the following tables.

• Sales – Contains transaction data.
• Products – Product details and categories.
• Customers – Customer information.
• Regions – Geographic information.

Step 1: Use Power Query for Data Import

Import Data:

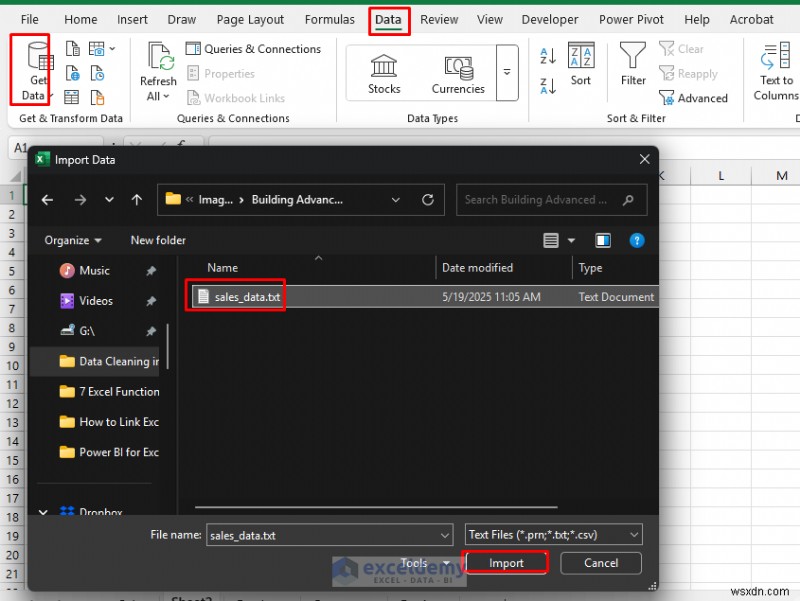

• Go to the Data tab >> select Get Data >> select From File >> select From Text/CSV.
• Navigate to your sales_data.txt file >> click Import.

• When the Power Query Editor opens, review the data and make these transformations:
• Change data types.

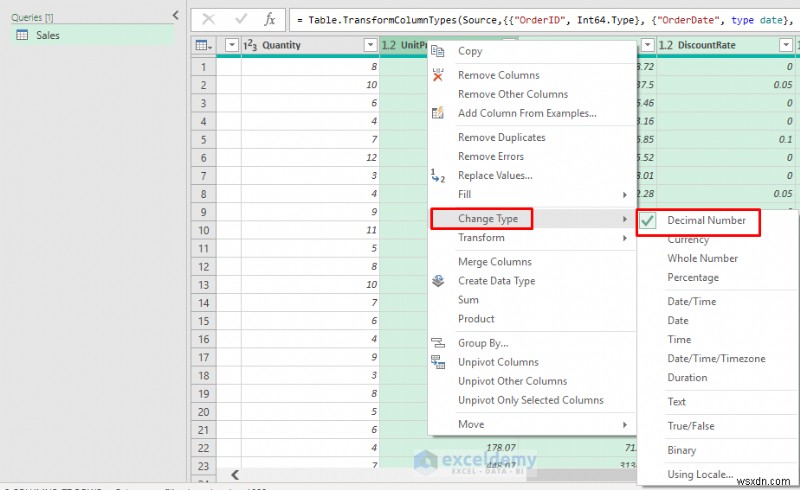

• Right-click any column >> select Change Data Type >> select Data Type.
  • OrderDate to Date.
  • Quantity to Whole Number.
  • UnitPrice and Discount to Decimal Number.

• Remove any duplicate rows using Remove Duplicates.
• Repeat the import process for Products.csv, Customers.csv, and Dates.csv, applying appropriate data type transformations.

Transform Data with Power Query:

Let’s enhance our sales data by performing tasks using Power Query.

Add Calculated Columns:

• In Power Query Editor, select Sales data.

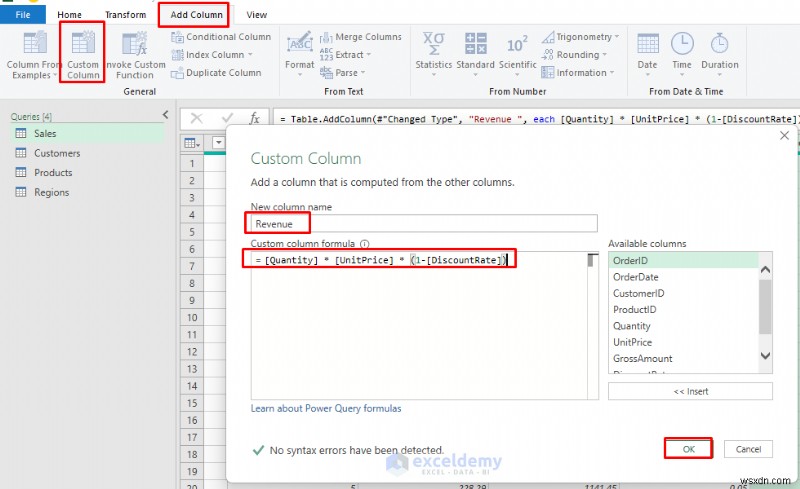

• Go to the Add Column tab >> select Custom Column.
• Name it: Revenue.
• Insert the following formula.

= [Quantity] * [UnitPrice] * (1-[DiscountRate])

• Click OK.

• Add another custom column.
• Name it: Profit.
• Insert the following formula.

Profit = [Revenue] - ([Quantity] * [UnitCost])

• Click OK.
• We will need to merge with the Products table to get the Cost.

Merge Tables for Additional Insights:

• In Power Query Editor with Sales data open.

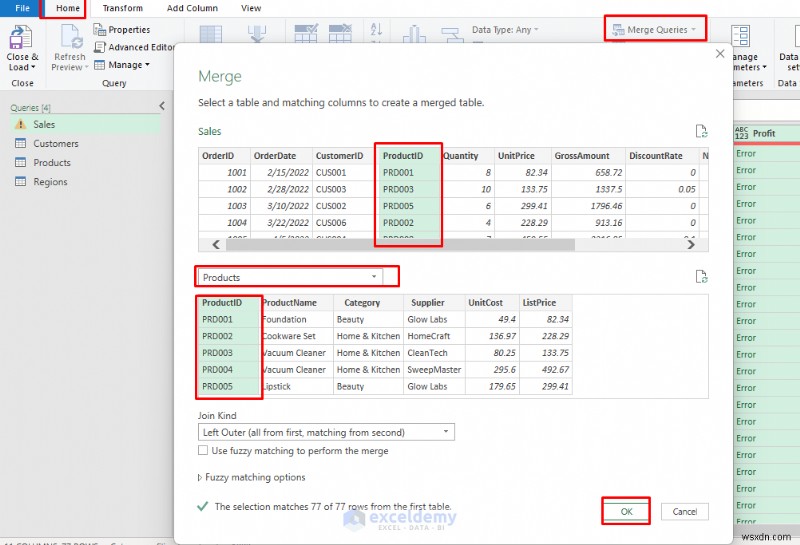

• Go to the Home tab >> click Merge Queries from the ribbon.
  • Select ProductID from the Sales table.
  • Select the Products table and join on ProductID.
  • Click OK.

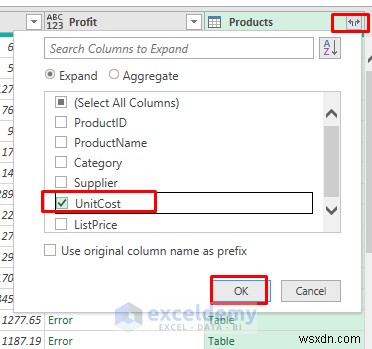

• Click on the Expand Table option >> select only the UnitCost column to bring in.
• Click OK.

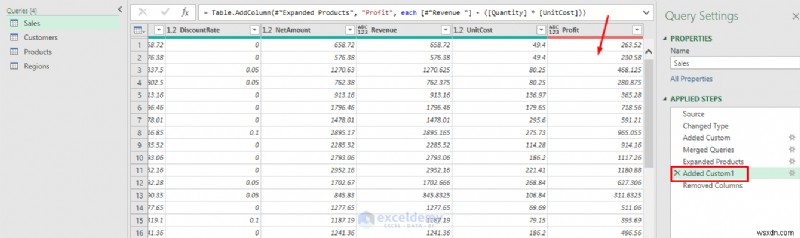

• Now, drag the Profit column under the Expanded Products step.
• You will get the profit amount.

• Once you are done with data transformation.

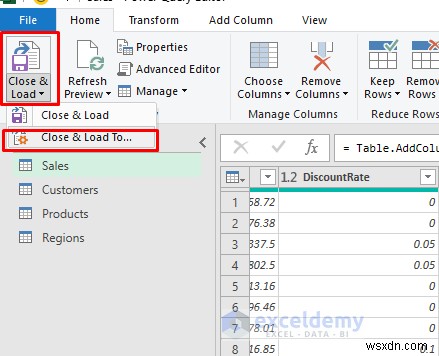

• Click Close & Load To…

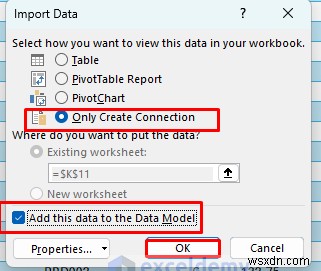

• In the Import Data box;
  • Select Only Create Connection.
  • Select Add this data to Data Model for all four tables.
  • Click OK.

Step 2: Build the Data Model with Power Pivot

Open Power Pivot:

If Power Pivot is not available in the ribbon, then enable it.

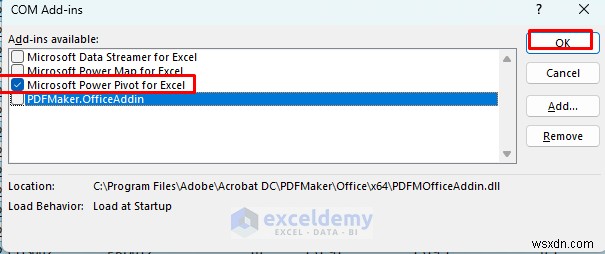

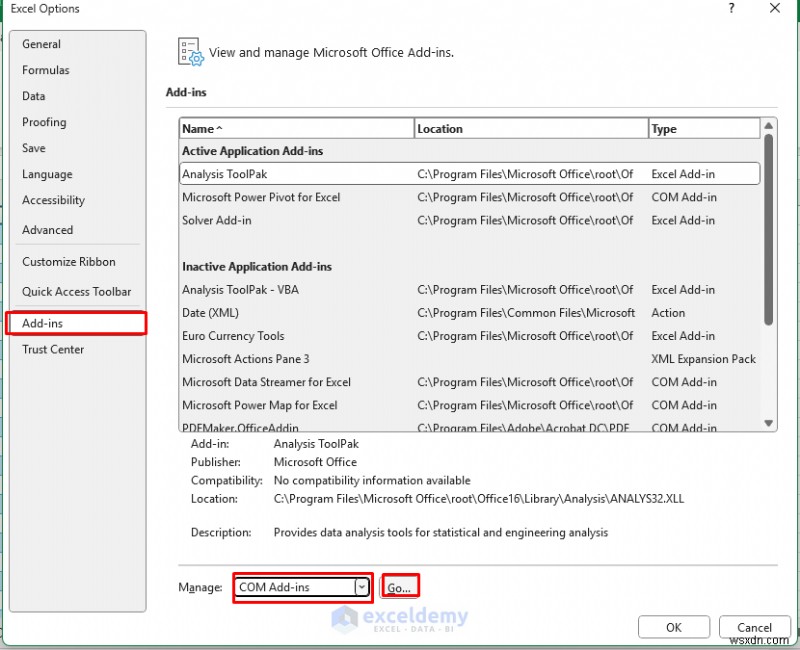

• Go to the File tab >> select Options >> select Add-ins.
• In Manage box >> select COM Add-ins >> select Go.

• Select Microsoft Power Pivot for Excel.
• Click OK.

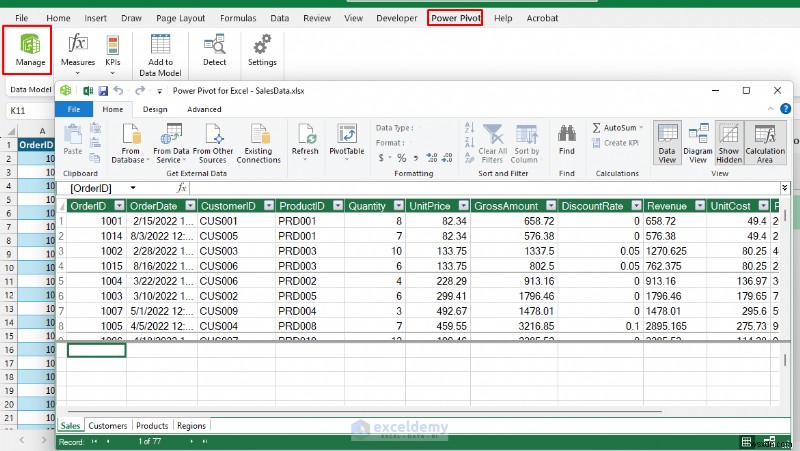

• Go to the Power Pivot tab >> select Manage.
• It will open the imported data from Power Query.

Create Relationships:

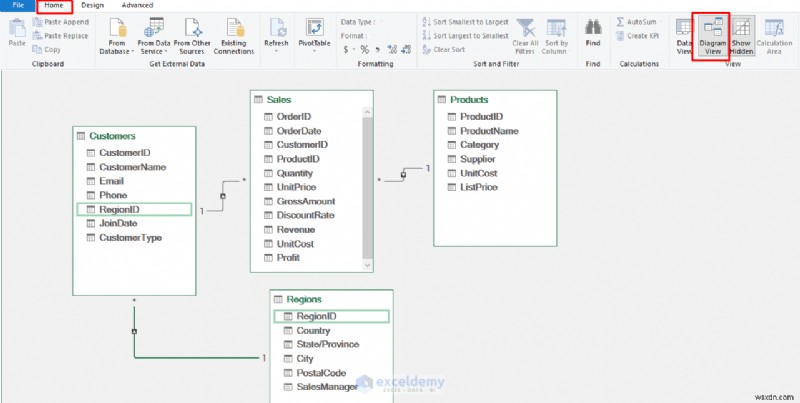

• Go to the Home tab >> select Diagram View.
  • Drag Sales[ProductID] to Products[ProductID].
  • Drag Sales[CustomerID] to Customers[CustomerID].
  • Drag Customers[RegionID] to Regions[RegionID].

• Or go to the Design tab >> select Create Relationship.
• Then select matching columns.

Create Calculated Measures:

• In Power Pivot, click on the Sales table.
• Go to the Home tab >> select Measures >> click New Measure.

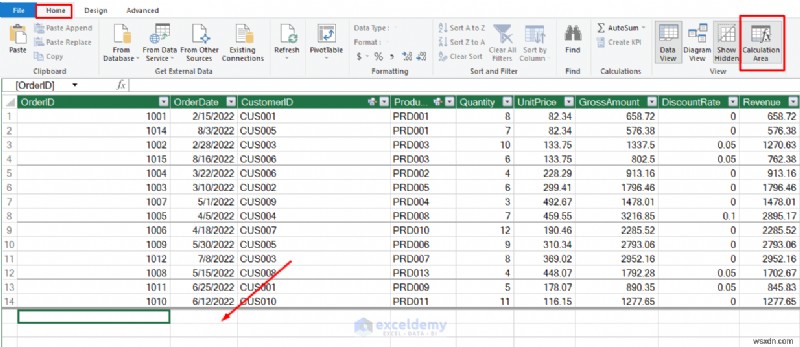

• Or, go to the Home tab >> select Calculation Area.

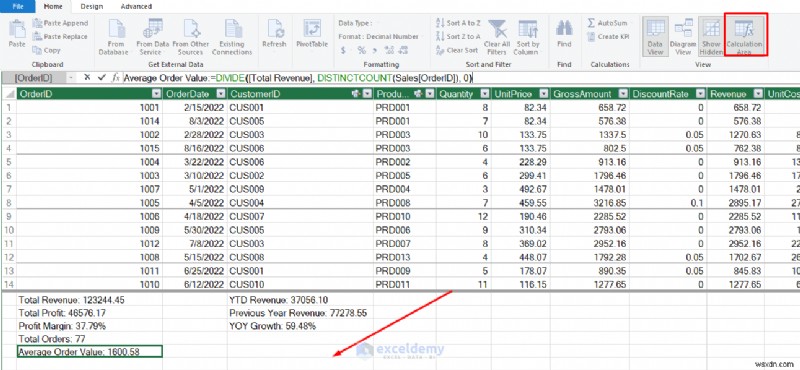

• Insert the calculated measures there:

• Total Revenue:

Total Revenue := SUM(Sales[Revenue])

• Total Profit:

Total Profit := SUM(Sales[Profit])

• Profit Margin:

Profit Margin := DIVIDE([Total Profit], [Total Revenue], 0)

• Total orders:

Total Orders:=COUNTA(Sales[OrderID])

• Average Order Value:

Average Order Value:=DIVIDE([Total Revenue], DISTINCTCOUNT(Sales[OrderID]), 0)

• YTD Revenue:

YTD Revenue:=CALCULATE([Total Revenue], DATESYTD(Sales[OrderDate]))

• Previous Year Revenue:

Previous Year Revenue:=CALCULATE([Total Revenue], SAMEPERIODLASTYEAR(Sales[OrderDate]))

• YOY Growth:

YOY Growth := DIVIDE([Total Revenue] - [Previous Year Revenue], [Previous Year Revenue], 0)

Step 3: Use Pivot Table to Create Dashboard Components

Create PivotTables

• Go to the Insert tab >> select PivotTable >> select From Data Model.

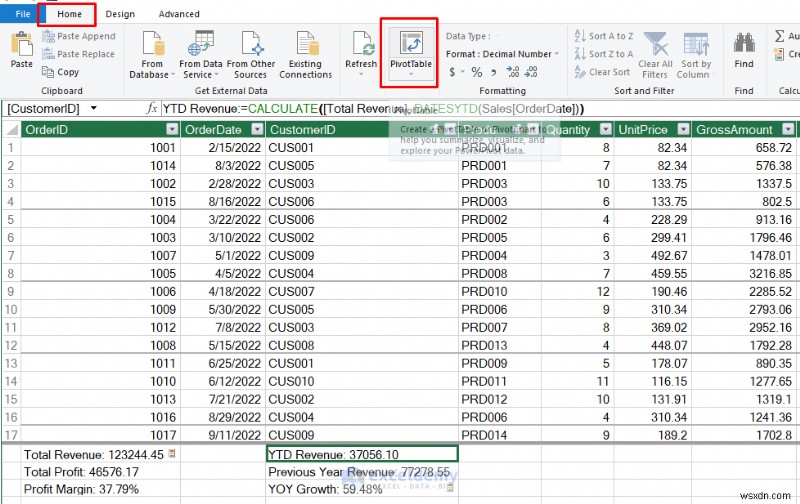

• In Power Pivot, go to the Home tab >> select Pivot Table.

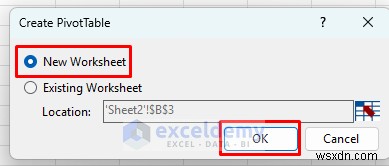

• In the Create PivotTable box;
  • Select New Worksheet.
  • Click OK.

• Create separate PivotTables for Total Revenue, Total Profit, Profit Margin, and Growth.
• Place these in cells that align with your dashboard structure.
• Format as currency or percentage as appropriate.

Charts and Visualizations

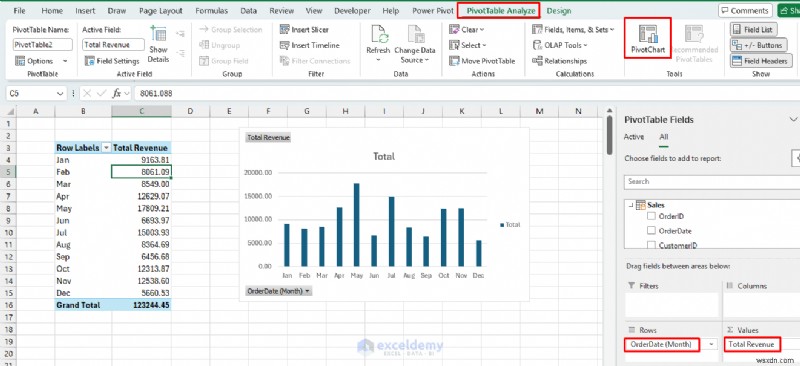

Revenue Trend Chart:

• Create a PivotTable from the Data Model.
  • Rows: Sales[OrderDate[Month]]
  • Values: Total Revenue
• Go to the PivotTable Analyze tab >> select Clustered Column Chart.

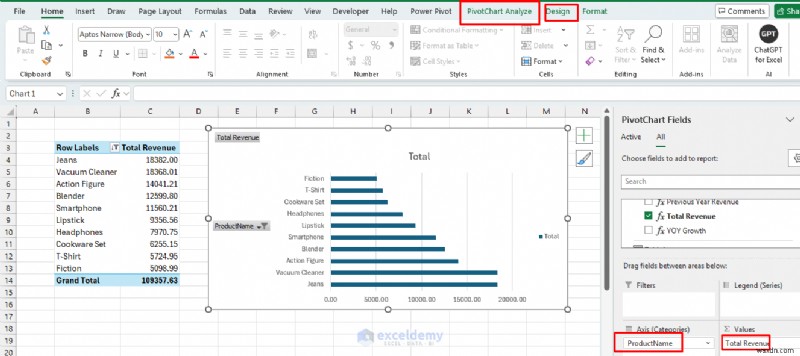

Top Products Chart:

• Create a PivotTable from the Data Model.
  • Rows: Products[ProductName]
  • Values: Total Revenue

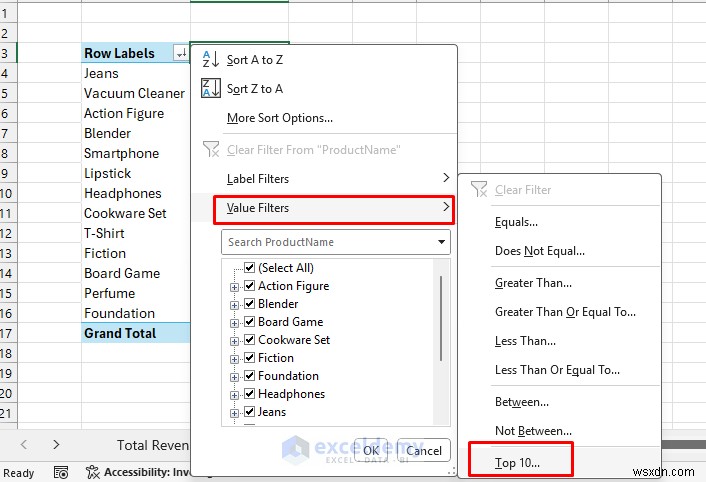

• Sort by Total Revenue descending, filter to top 10.

• Go to the PivotTable Analyze tab >> select Clustered Bar Chart.

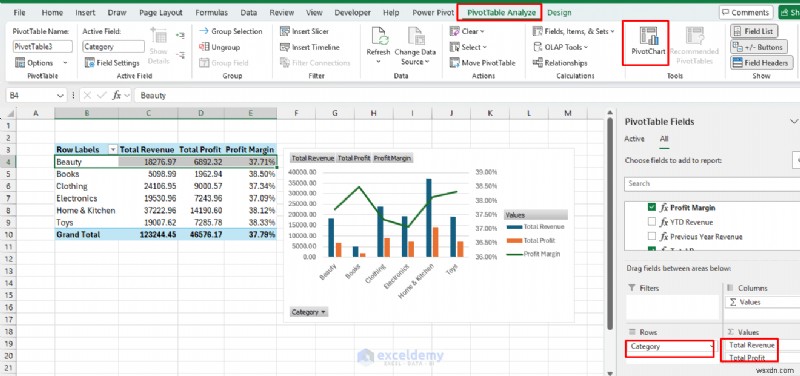

Category Performance:

• Create a PivotTable from the Data Model.
  • Rows: Products[Category]
  • Values: Total Revenue, Total Profit, Profit Margin.
• Go to the PivotTable Analyze tab >> select Combo >> select Clustered Column – Line on Secondary Axis.

Step 4: Insert Interactive Elements

Insert Slicers and Timeline:

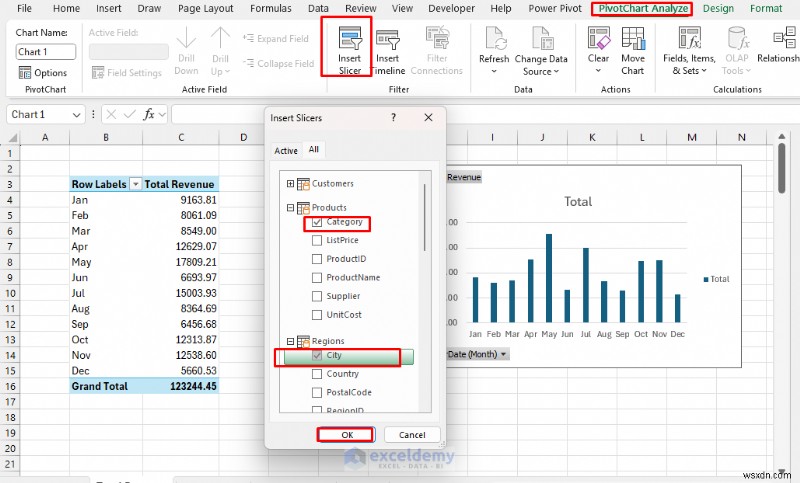

Create Product and Region Slicers:

• Go to the PivotAnalyze tab >> select Insert Slicer.
• Select Products[Category] and Customers[Region].
• Click OK.

• Format them to match your dashboard design.

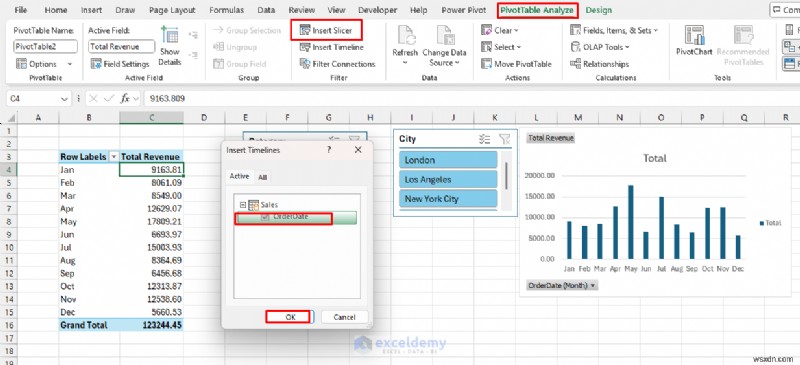

Add a Timeline for Date Filtering:

• Go to the PivotAnalyze tab >> select Insert Slicer.
• Select Sales[OrderDate].
• Click OK.

• Position above your charts.
• Format to match your dashboard style.

Connect All Slicers to PivotTables:

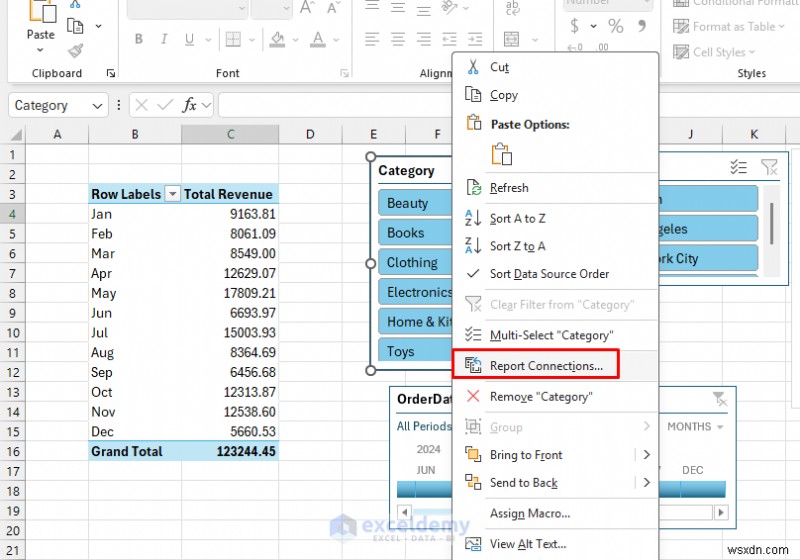

• Right-click each slicer >> select Report Connections.

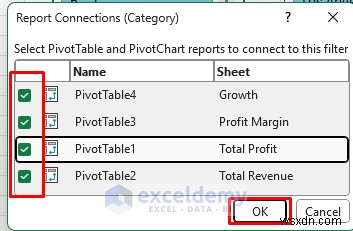

• Check all PivotTables to ensure filters apply globally.
• Click OK.

Step 5: Automate and Enhance Interactivity with VBA

We’ll use VBA to make the dashboard dynamic and easier to navigate.

Example 1: Refresh Data Button

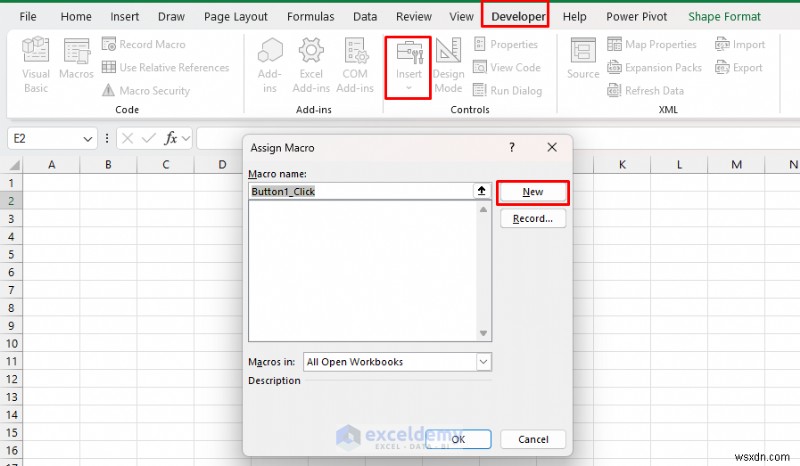

• Go to the Developer tab >> select Insert >> select Button.
• Rename the button to Refresh Data.
• Right-click button >> select Assign Macro >> select New.

• Copy-paste the following code.

VBA Code:

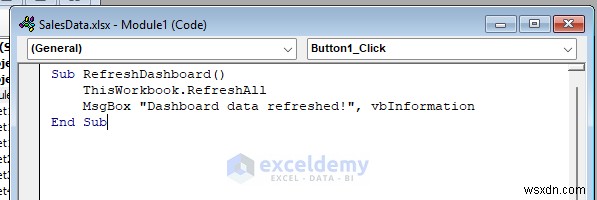

Sub RefreshDashboard()
 ThisWorkbook.RefreshAll
 MsgBox "Dashboard data refreshed!", vbInformation
End Sub

Example 2: Dashboard Reset Button

• Go to the Developer tab >> select Insert >> select Button.
• Rename the button to Reset Dashboard.
• Right-click button >> select Assign Macro >> select New.
• Copy-paste the following code.

VBA Code:

Sub ResetDashboardFilter()
 Dim ws As Worksheet
 Dim slicer As slicerCache
 Dim pivotTable As pivotTable

 ' Clear all slicer caches
 For Each slicer In ActiveWorkbook.SlicerCaches
 slicer.ClearAllFilters
 Next slicer

 ' Reset any timelines (already using SlicerCaches)
 For Each slicer In ActiveWorkbook.SlicerCaches
 If slicer.SourceType = xlTimeline Then
 slicer.ClearAllFilters
 End If
 Next slicer

 ' Refresh pivot tables
 For Each ws In ActiveWorkbook.Worksheets
 For Each pivotTable In ws.PivotTables
 pivotTable.RefreshTable
 Next pivotTable
 Next ws

 MsgBox "Dashboard filters have been reset!", vbInformation, "Reset Filters"
End Sub

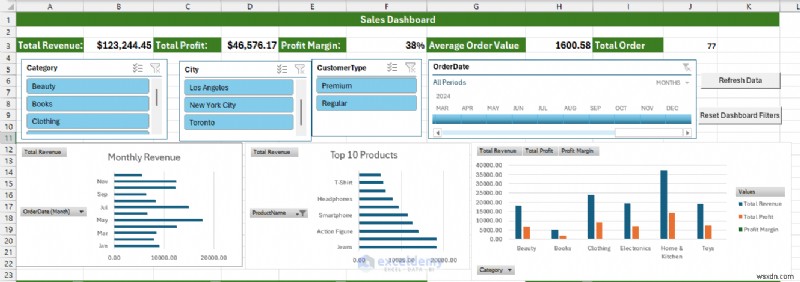

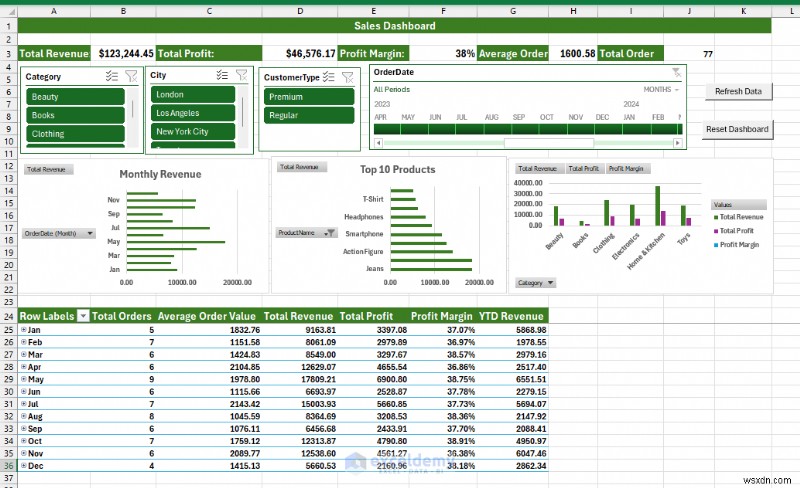

Step 6: Create the Dashboard Layout

Create a new worksheet named Dashboard.

• Set Up the Dashboard Structure:
  • Dashboard title and date filter.
  • KPI section (Revenue, Profit, Margin, Growth).
  • Charts (Sales Trend, Top Products, Regional Performance).

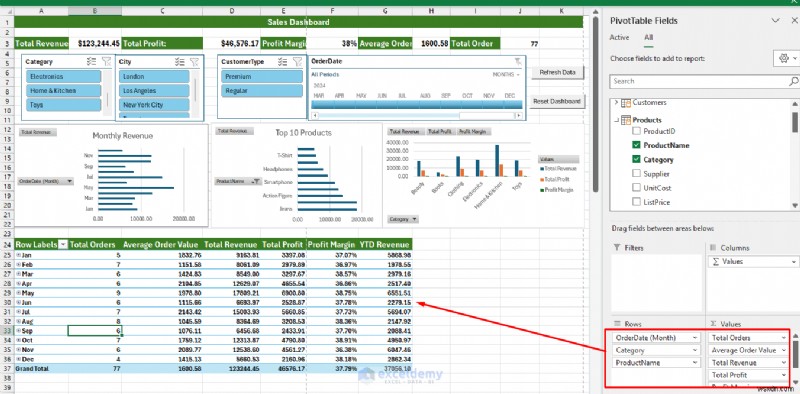

• You can create a summary table for the Data tables and a detailed analysis.

• Apply consistent formatting:
  • Use a consistent color scheme throughout.
  • Align all elements properly.
  • Add borders to separate dashboard sections.

• Add Conditional Formatting to Data Tables:
  • Use data bars and color scales to highlight important values.
  • Add KPI icons to show performance against targets.
• Create an Instruction Sheet:
  • Create a new worksheet named Instructions.
  • Add text explaining how to use the dashboard.
  • Include information on data refresh, interactivity, and available features.

Step 7: Test and Troubleshoot

Test All Interactive Elements:

• Ensure slicers filter all relevant visualizations.
• Verify that buttons execute macros correctly.
• Check the timeline controls to ensure data ranges are properly.

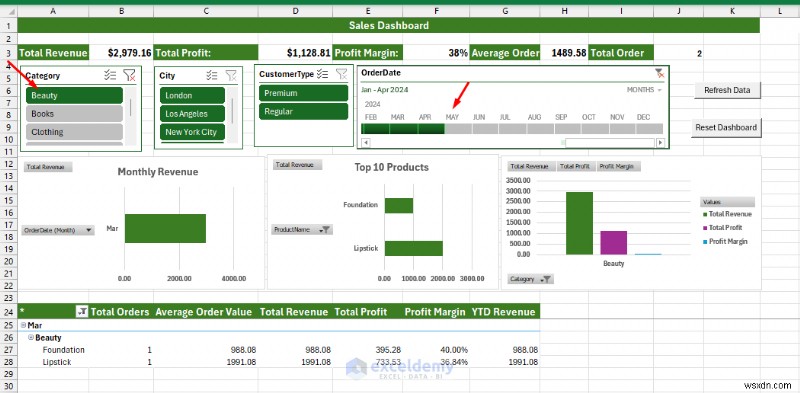

  • Select Beauty from the Category slicer.
  • Select Jan-April 2024 from Timeline.
• This will update the entire dashboard based on the filter selection.

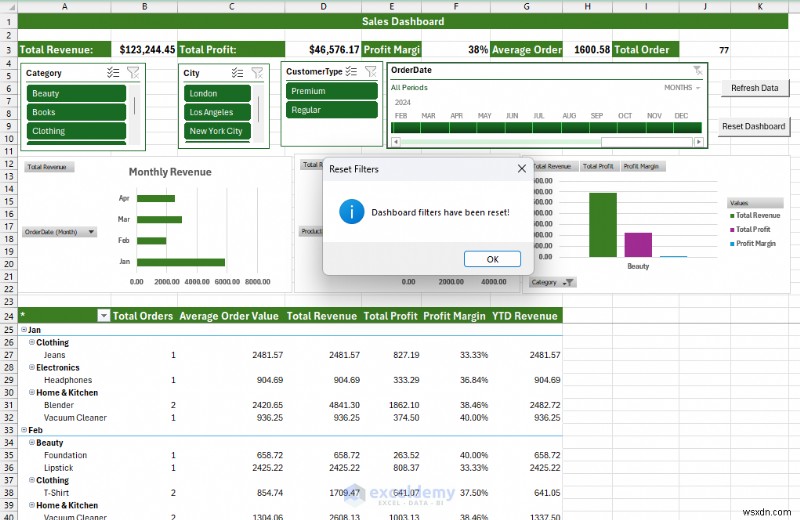

Test Reset Data Filter:

• Click on the Reset Dashboard.
• A message will pop up, “Dashboard filters have been reset”.
• Click OK.
• All filters will be removed, and you will get a fresh dashboard.

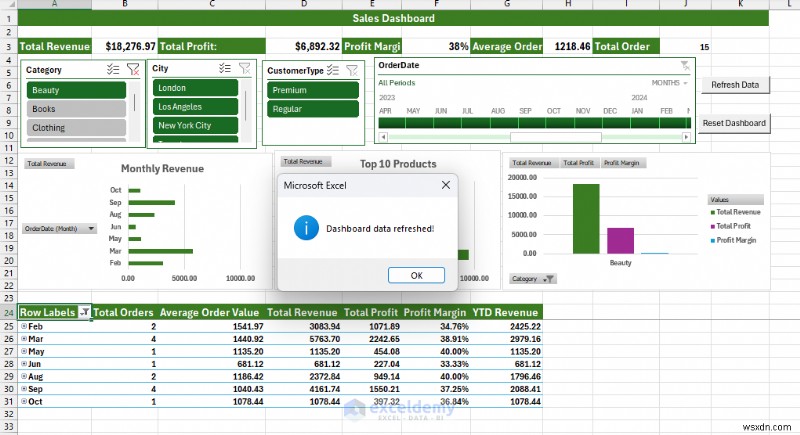

Test Data Refresh:

• Modify the source data.
• Click Refresh Data.
• Ensure all calculations update correctly.
• Check for any broken connections or formulas.

Download Practice Workbook

Conclusion

Following all the steps, you can build an advanced Excel dashboard that will work as a powerful business intelligence tool. This dashboard leverages the power of Power Query for data preparation, Power Pivot for modeling and analysis, and VBA for enhanced interactivity. This dashboard provides a user-friendly interface for analyzing sales performance across products, regions, and time periods. Experiment with the dashboard and add more advanced functionalities.
