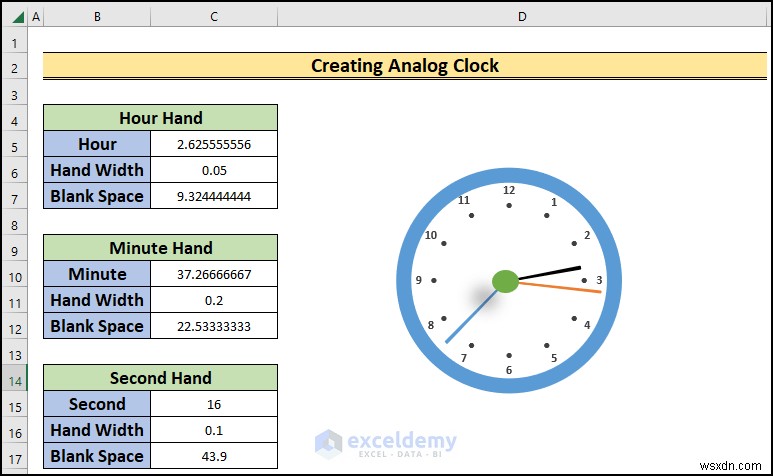

Build a Real-Time Analog Clock in Excel: Step‑by‑Step Guide

Step 1: Setting up Hours, Minutes, and Seconds

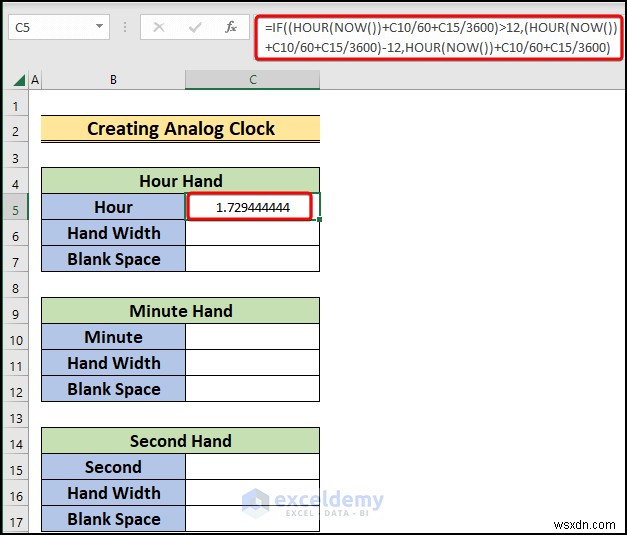

• Click on cell C5 and enter the following formula:

=IF((HOUR(NOW())+C10/60+C15/3600)>12,(HOUR(NOW())+C10/60+C15/3600)-12,HOUR(NOW())+C10/60+C15/3600)

• Press Enter.
• As a result, we will get the value that will control the hours on the clock.

• Enter the Hour Hand Width in cell C6.

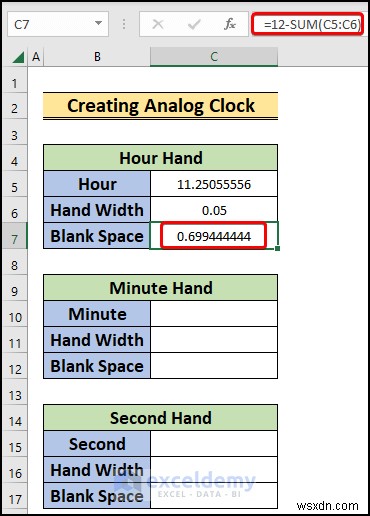

• Choose the C7 cell and enter:

• We will get the blank space for hours.

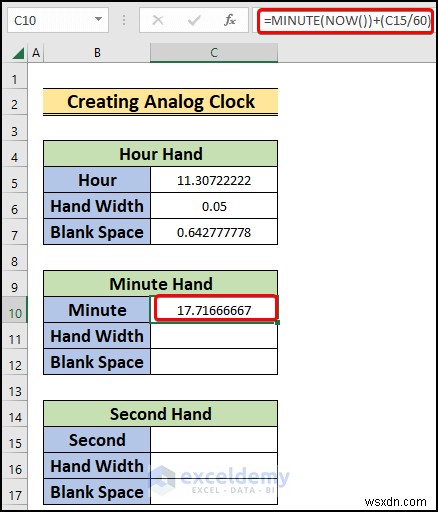

• Select cell C10 and enter:

• Press Enter.
• We will have the value for the minutes in the clock.

• Enter the Minute Hand Width in cell C11.

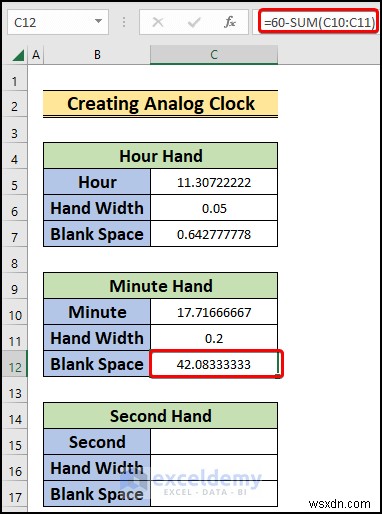

• Choose cell C12 and enter:

• As a result, we will get blank space for minutes.

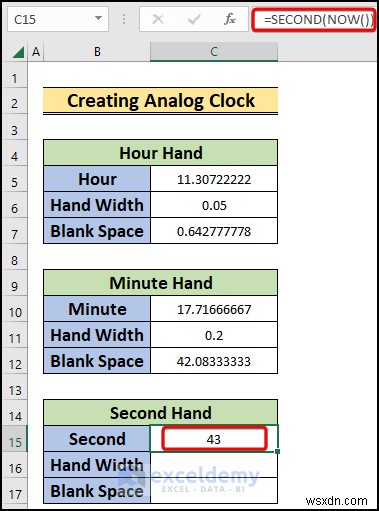

• Select cell C15 and enter:

• Press the Enter button.

• We will have the value to control the seconds.
• Set the Second Hand Width in cell C16.

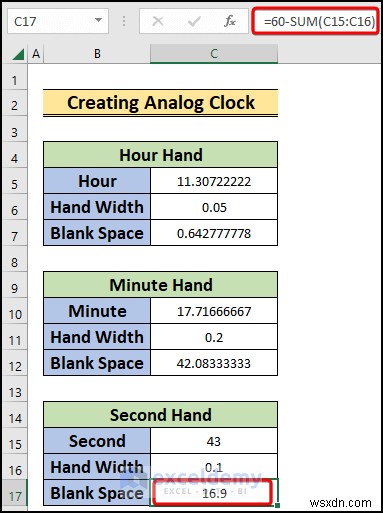

• Choose cell C17 and enter:

• We will get the value that will control the seconds in the clock.

Read More: How to Create Digital Clock in Excel

Step 2: Creating the Clock Frame

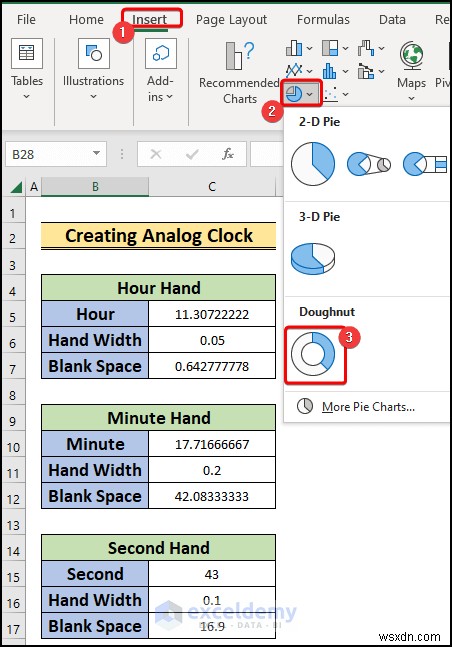

• Go to the Insert tab.
• Choose the Doughnut Chart from the Insert Pie or Doughnut Chart option.
• We will have a blank box on the screen.

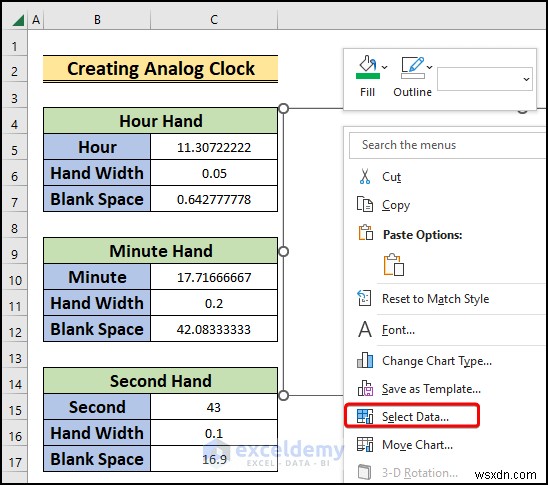

• Right-click on the box and select Select Data from the available options.

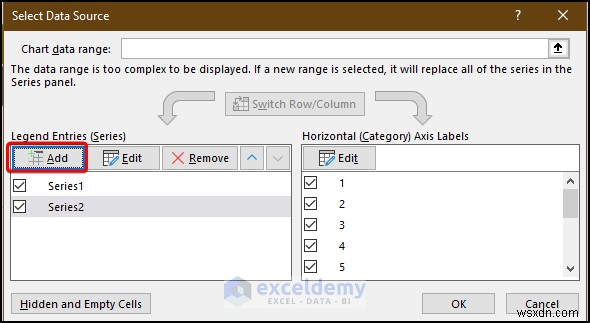

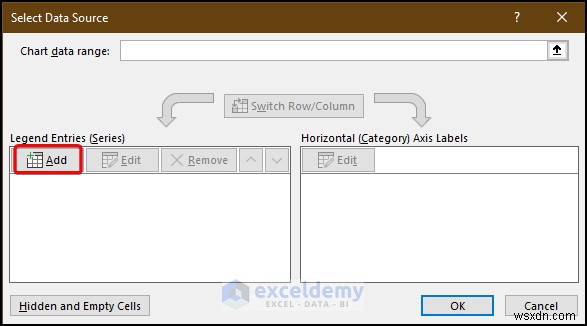

• A prompt will open on the screen.

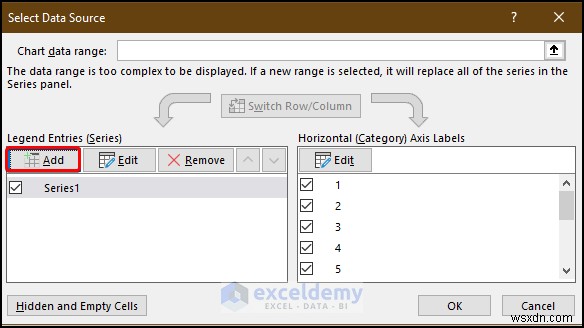

• Click on Add in the prompt.

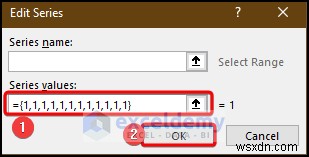

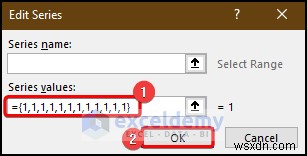

• In the Edit Series prompt, enter the following as the Series values:

={1,1,1,1,1,1,1,1,1,1,1,1}

• Choose OK.
• As a result, a data series will be added to the chart, setting the position of the hour.

• Click on Add.

• Enter the same value as the previous one in the Series values. We are doing this for the minute hand.
• Click OK.
• This, too, will add another data series to the existing chart.

• Click on Add.

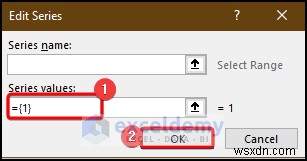

• Enter {1} as the Series value to give shape to the second hand.
• Choose OK.

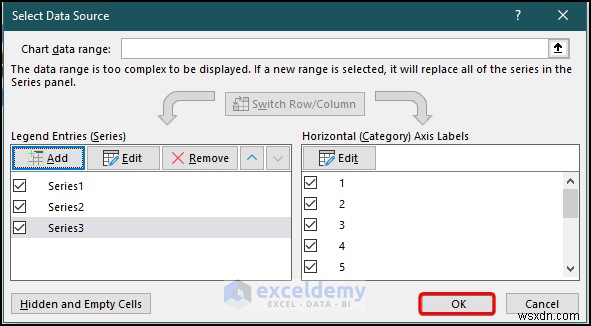

• Click OK to exit the Select Data Source prompt.

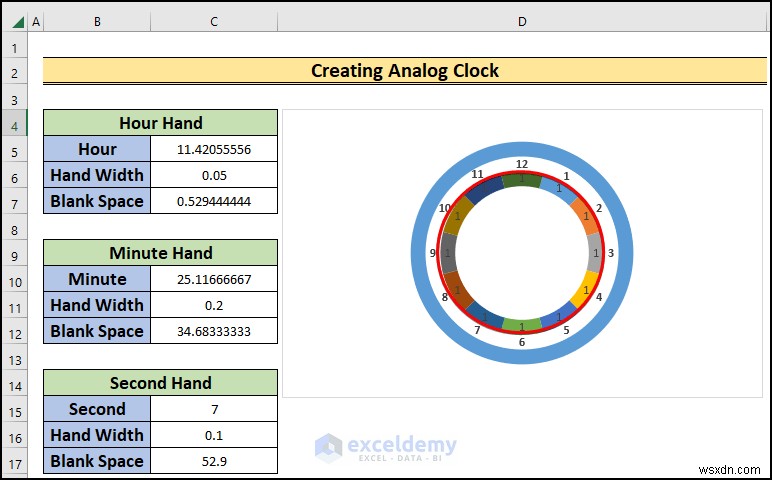

• A Doughnut chart will be on the screen.

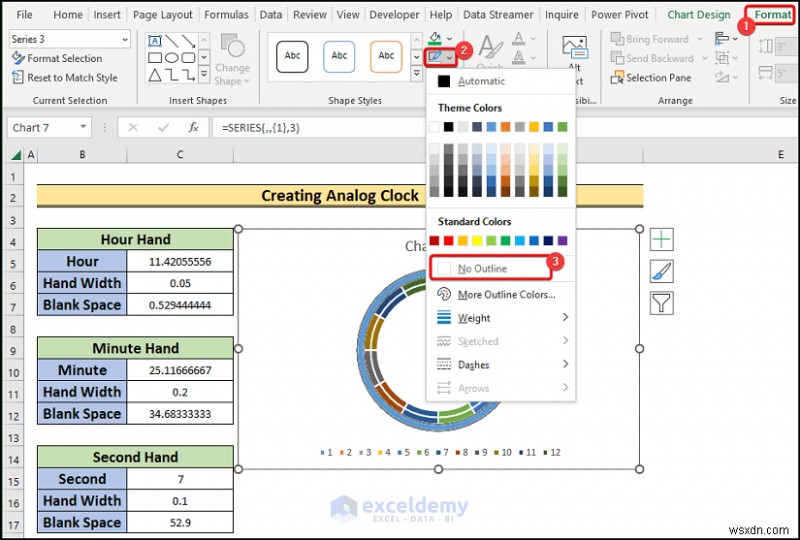

• Click on the chart.
• Go to the Format.
• Set No Outline from the Shape Outline option.

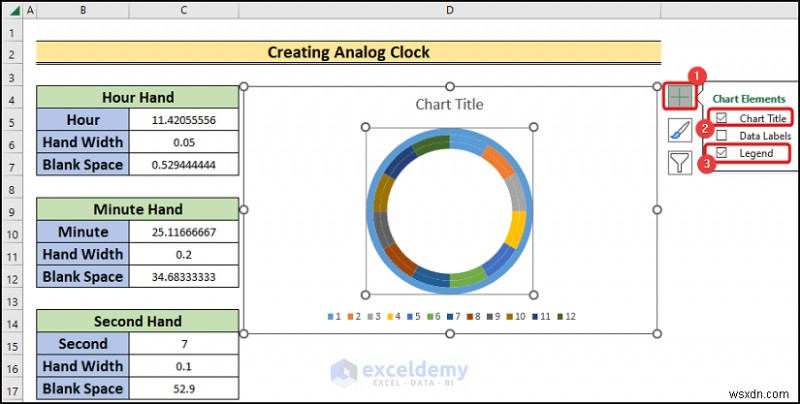

• Turn off the Chart Title and Legend of the chart after clicking on the plus sign at the top-right corner of the chart.

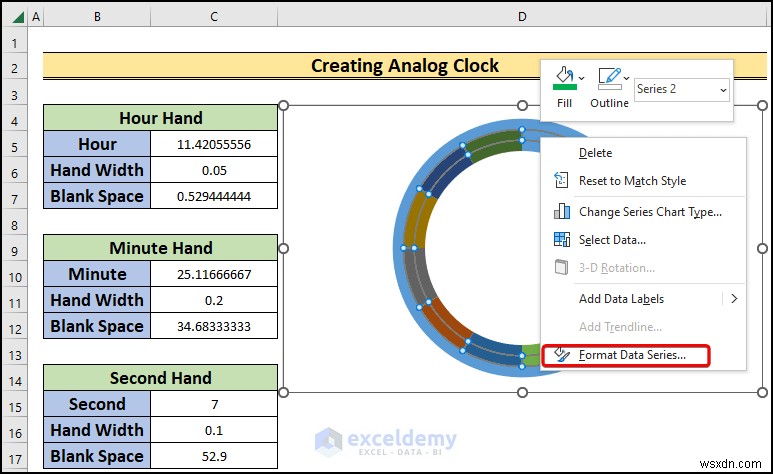

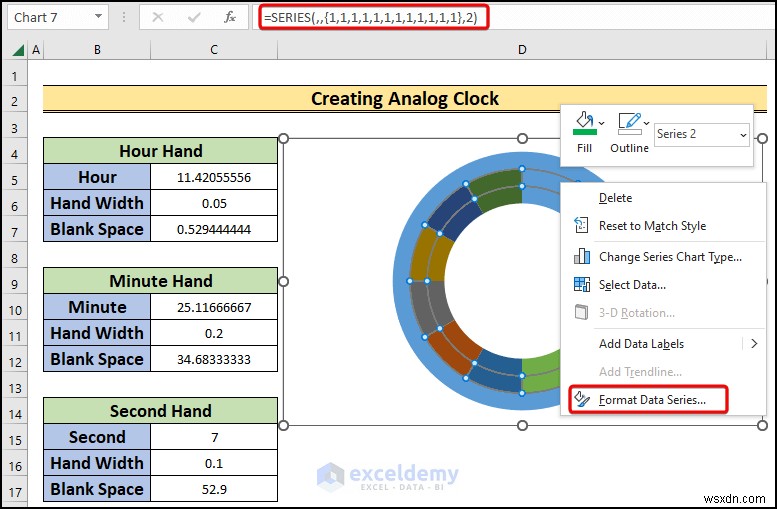

• Choose any of the data series and right-click.
• From the available options, choose Format Data Series.

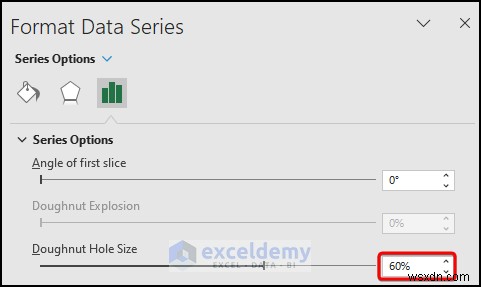

• Change the Doughnut Hole Size to 60% from the Format Data Series tab on the right.

• Right-click on the data series 2 from the chart.
• Select Format Data Series.

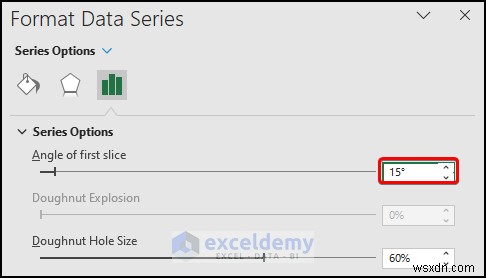

• Set the Angle of the first slice to 15%.

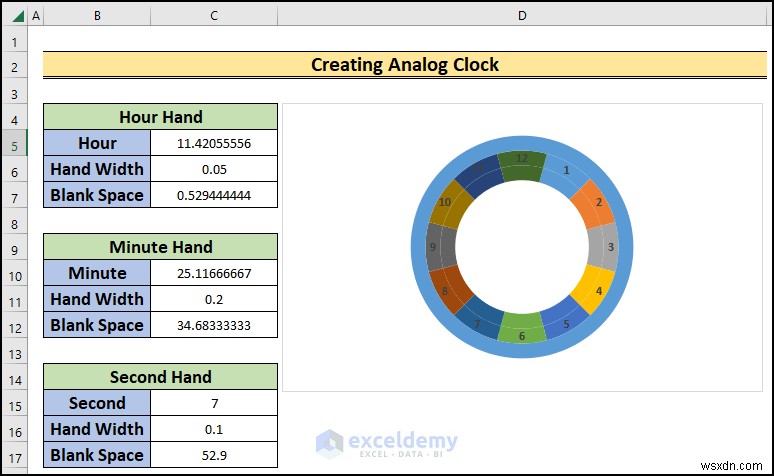

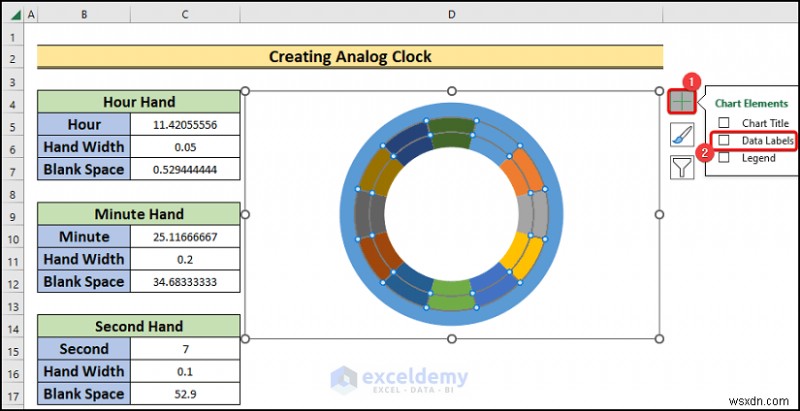

• Turn on the Data Labels for the data series 2.

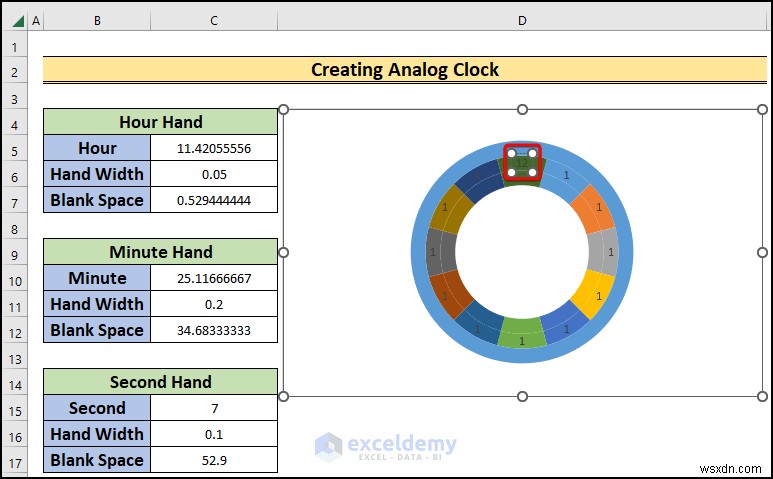

• Enter 12 in the data label that is at the top middle position.

• Enter the rest of the chart labels as the sequence of an Analog Clock.

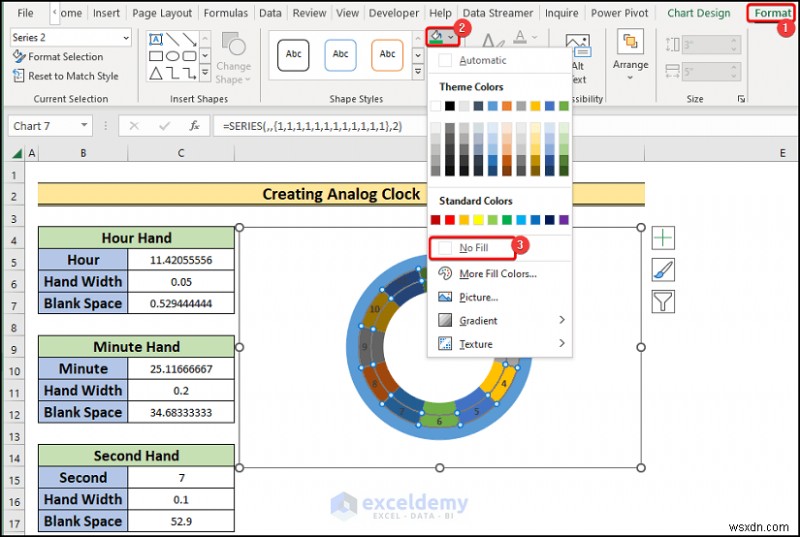

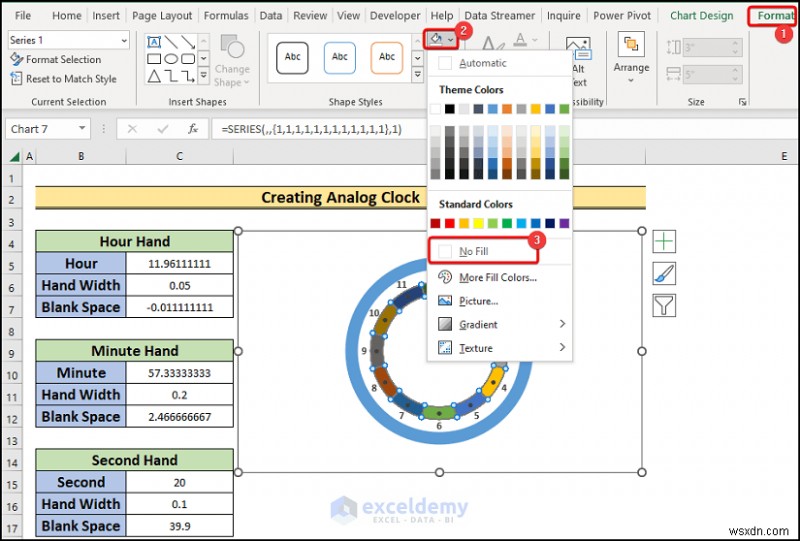

• Remove the fill color of the data series 2 by going to the Format tab and clicking No Fill from the Shape Fill option.

• Turn on the data label of the data series 1.

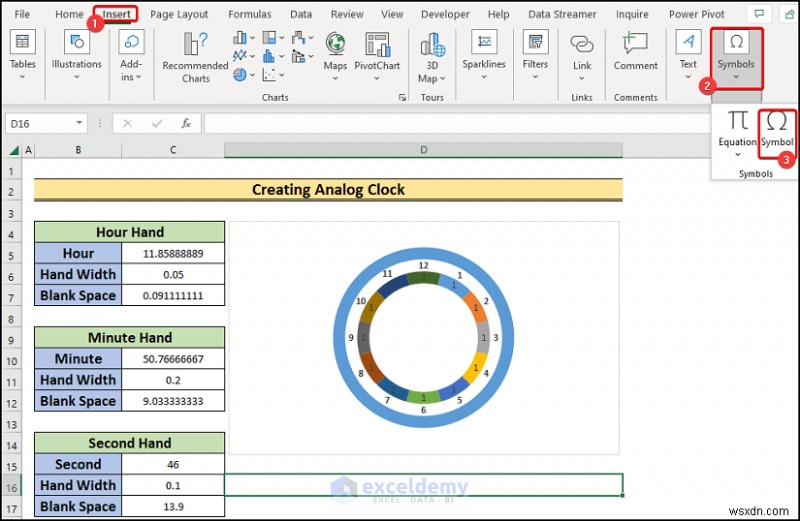

• Choose cell D16.
• Go to the Insert tab.

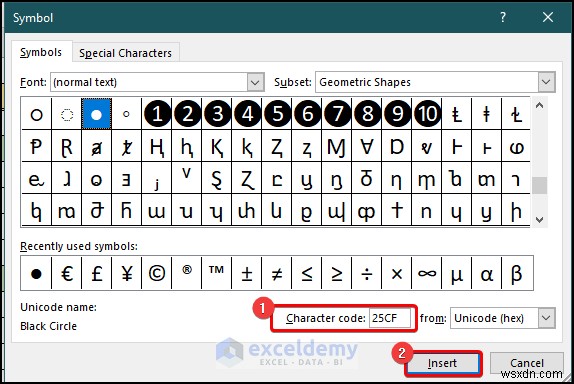

• Select Symbol from the Symbols option.

• In the Symbol prompt, enter 25CF as the Character code.
• Press Insert.

• As a result, the character will be inserted in the sheet.

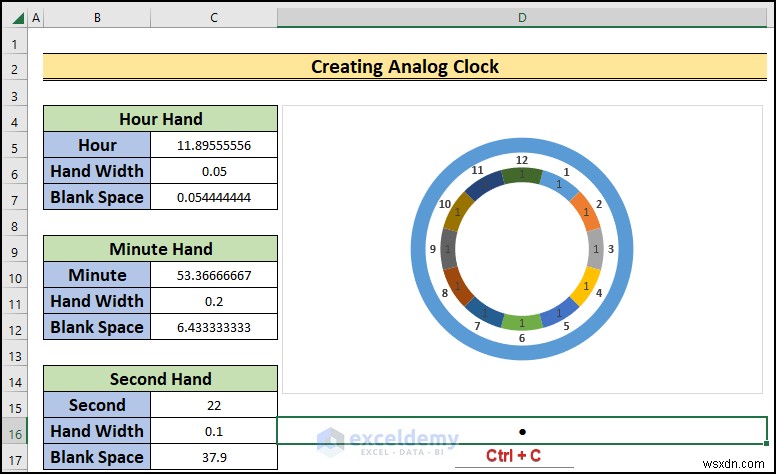

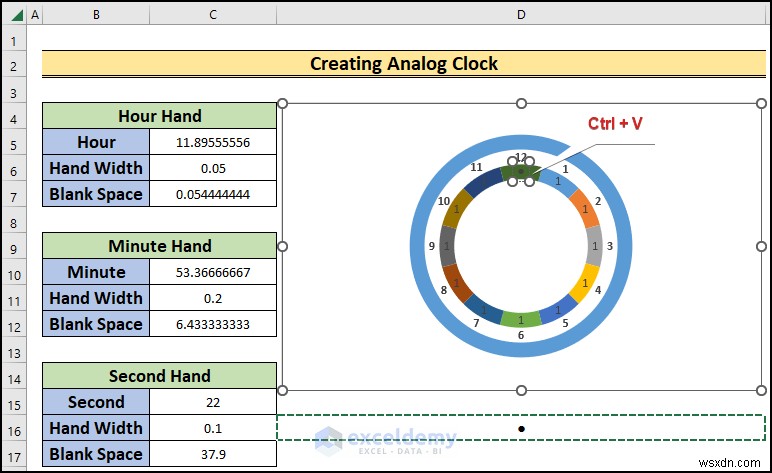

• Copy the character by pressing Ctrl+C.

• Paste the character in the data label of the data series 1 by using Ctrl+V.

• Do the same for the rest of the data labels.

• Turn off the fill color of the data series 1.

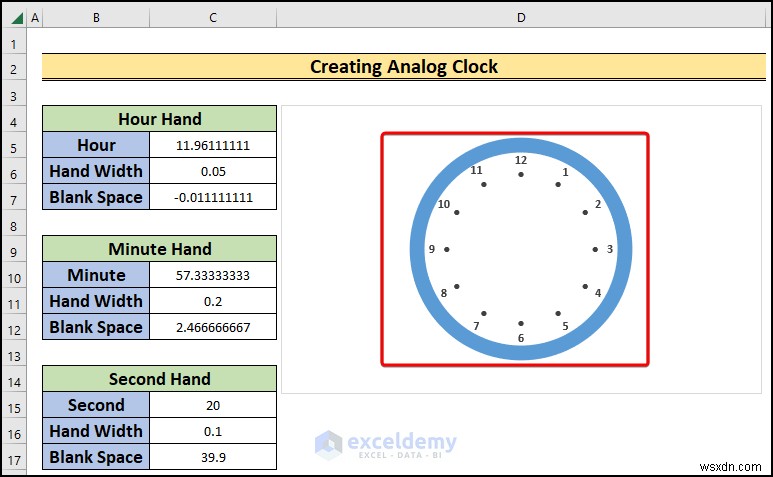

• We will have the frame of our Analog Clock.

Read More: How to Make a Clock Chart in Excel

Step 3: Inserting Time Hands

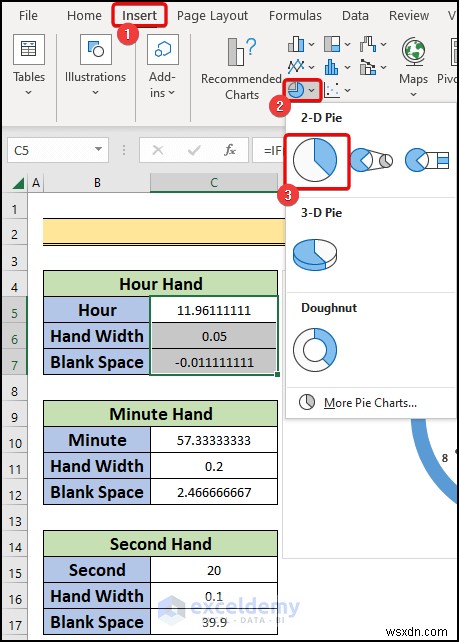

• Choose the C5:C7 cell range.
• Go to the Insert tab.
• Choose the Pie Chart from the Insert Pie or Doughnut Chart option.

• We will have a Pie Chart box on the screen.
• Turn the Chart Title and Legend off for the chart.

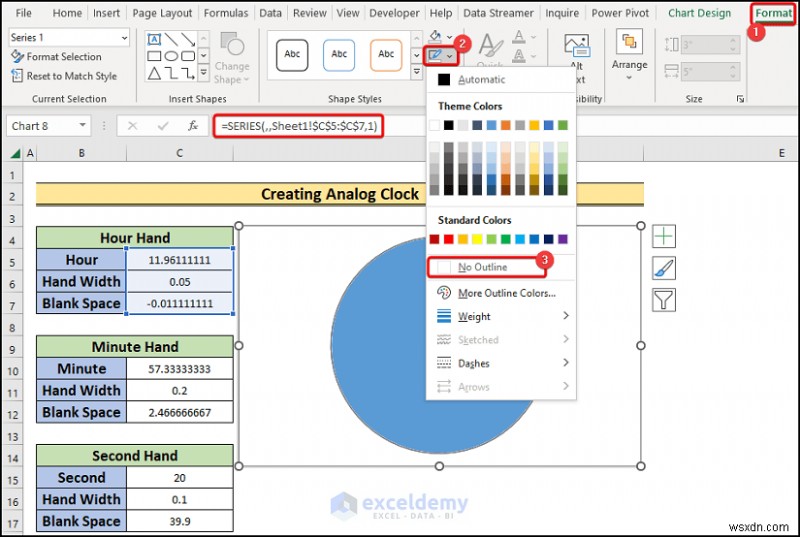

• Change the outline of the data series one to No Outline.

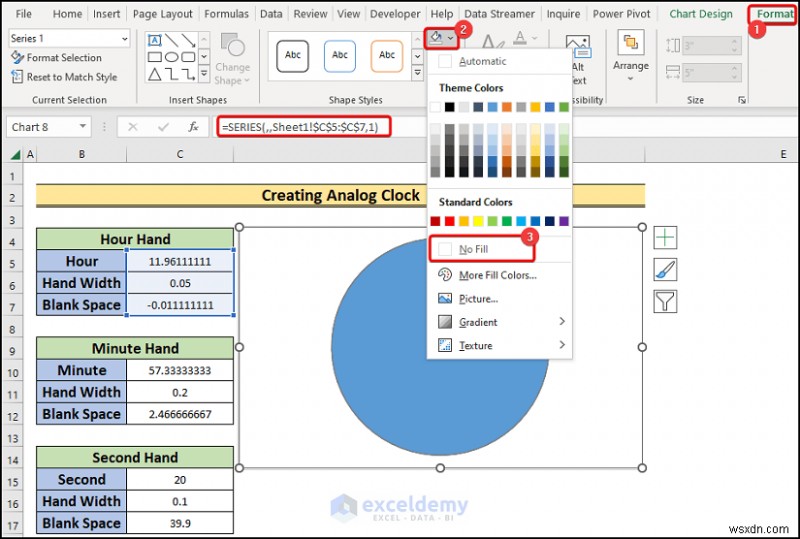

• Set the fill color to No Fill.

• Do the same for the data series 1.

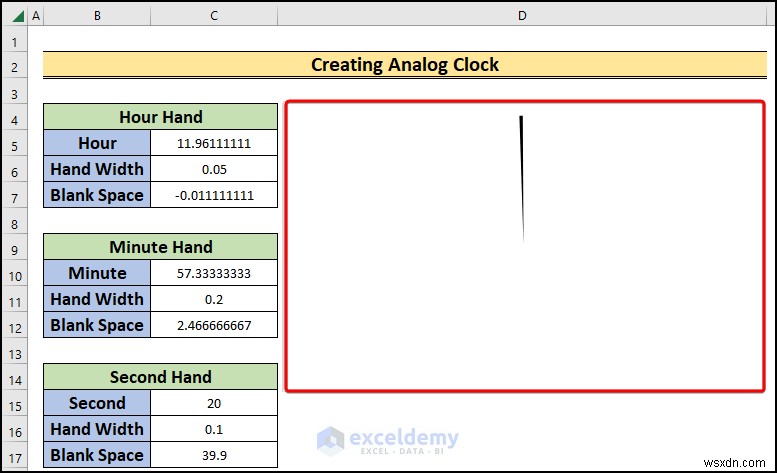

• We will have the portion of the Hour Hand Width.

Read More: How to Make a Running Clock in Excel

Step 4: Aligning the Time Hand

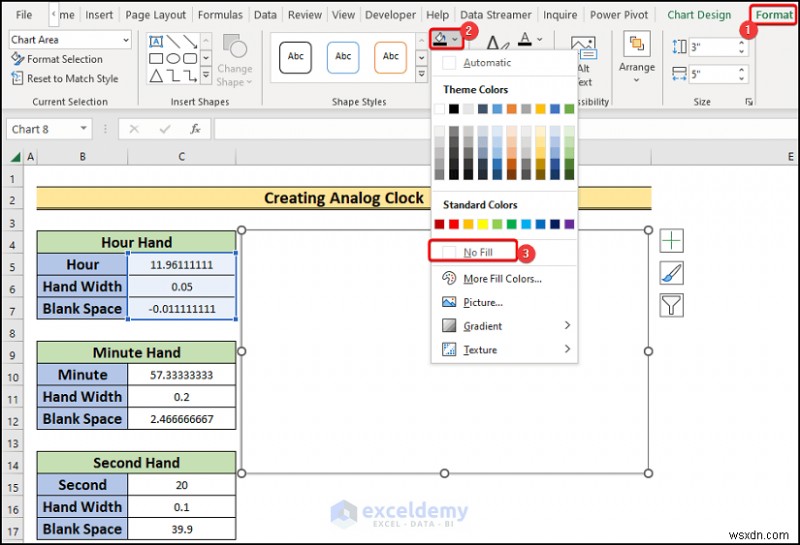

• Set the fill color of the background of the entire Pie Chart to No Fill.

• Fit the Hour Hand inside the clock by adjusting the size of the Pie Chart.

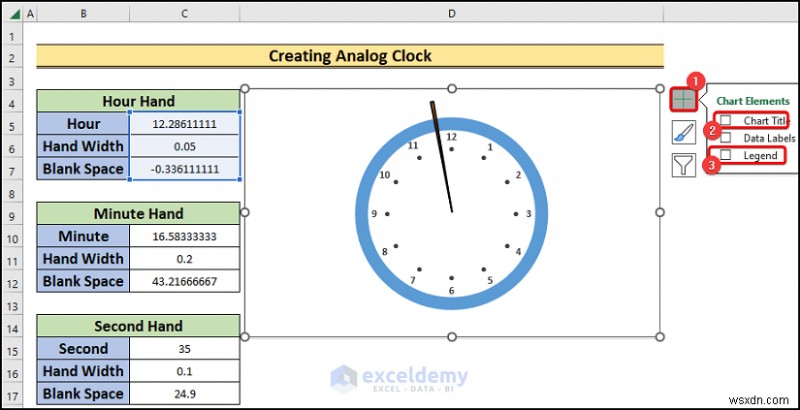

• Turn off the Chart Title and Legend of the Doughnut Chart.

• Insert a Pie Chart for the Minute Hand and Second-Hand datasets.
• Set the color of the hands different from each other.
• Set the size of the hands so they are different from each other.
• Adjust them inside the clock.

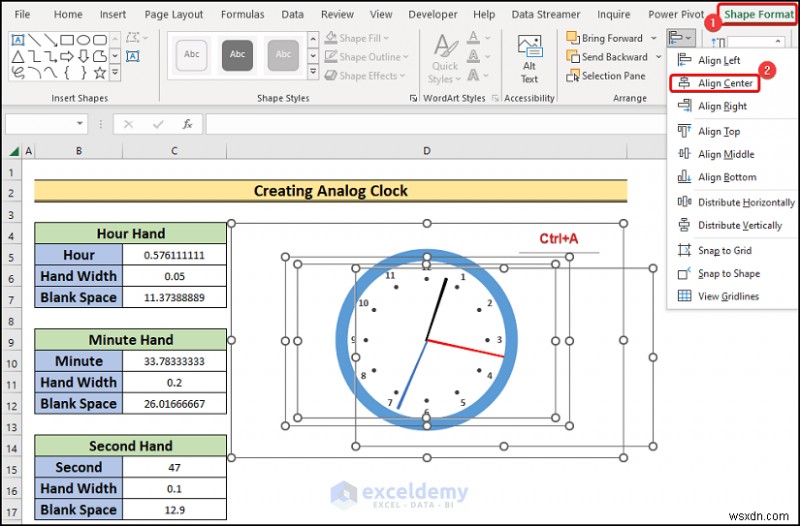

• Click on any of the charts and press Ctrl+A.
• Go to the Shape Format.
• Choose Align Center from the Align option.

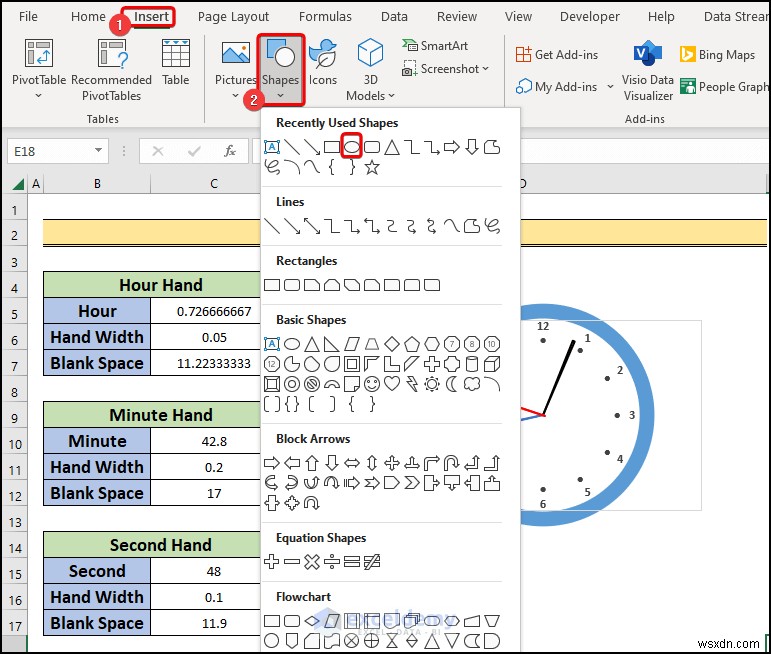

• Go to the Shapes option from the Insert tab.
• Select an oval shape from the available options.

• Set it at the center of the clock.

Read More: How to Use VBA Code for Creating Digital Clock in Excel

Step 5: Applying VBA Code for Starting and Stopping the Clock

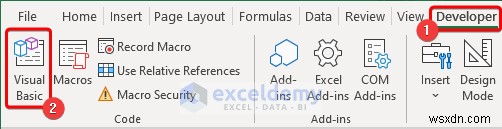

• Go to the Developer tab.
• Choose Visual Basic.
• A new window will be opened.

• In the Visual Basic window, choose ThisWorkbook under the VBAProject option.
• A coding module will appear.

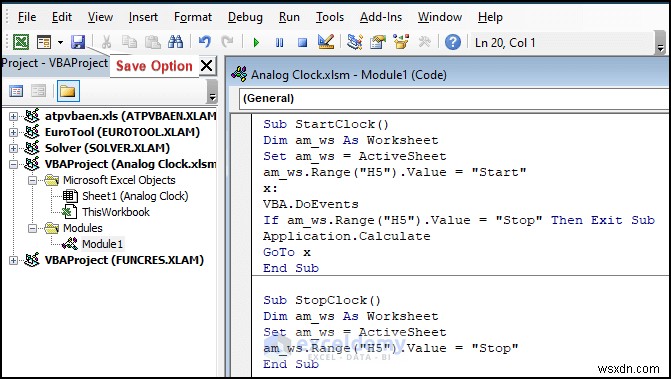

• In the module, enter the following code and save it:

Sub StartClock()
Dim am_ws As Worksheet
Set am_ws = ActiveSheet
am_ws.Range("H5").Value = "Start"
x:
VBA.DoEvents
If am_ws.Range("H5").Value = "Stop" Then Exit Sub
Application.Calculate
GoTo x
End Sub

Sub StopClock()
Dim am_ws As Worksheet
Set am_ws = ActiveSheet
am_ws.Range("H5").Value = "Stop"
End Sub

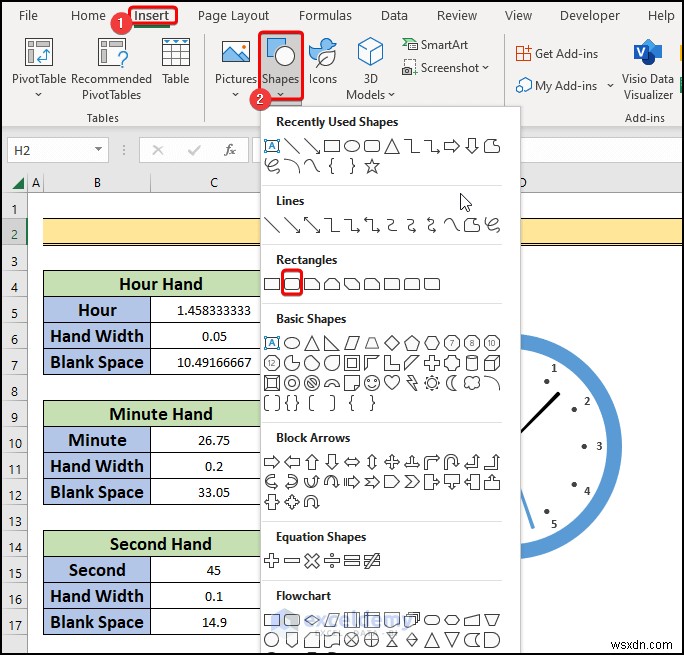

• Go to the Insert tab.
• Select a rectangle shape from the Shapes option.

• Enter the shape below the clock and name it Start.
• Repeat the same process to insert a Stop box.

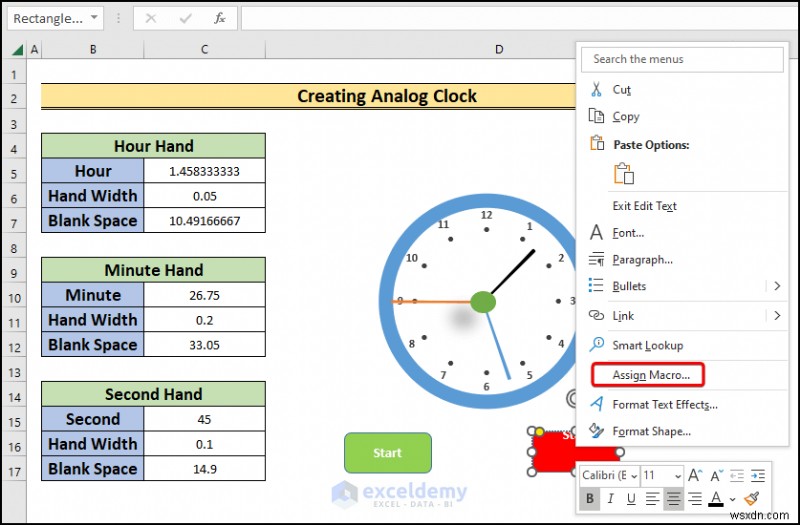

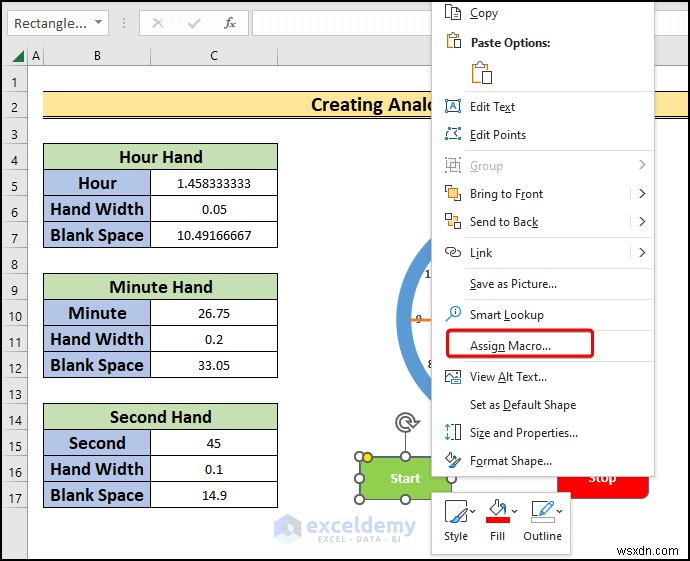

• Right-click on the Start button.

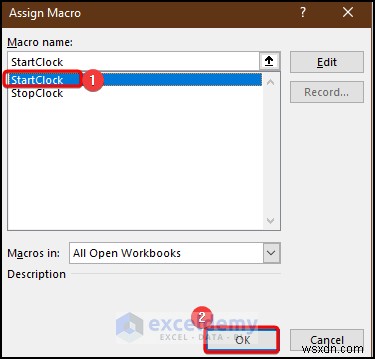

• From the available options, select Assign Macro.

• Assign the StartClock macro to the button.
• Finally, click OK.

• Again, right-click on the Stop button.

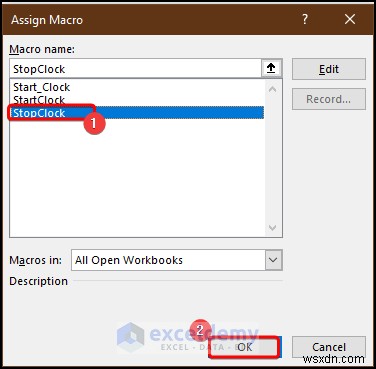

• From the prevailing options, select Assign Macro.

• Assign the StopClock macro to that button.

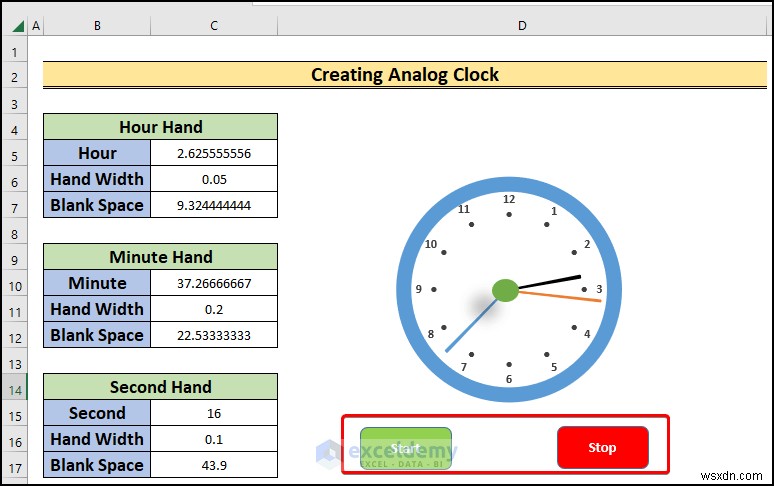

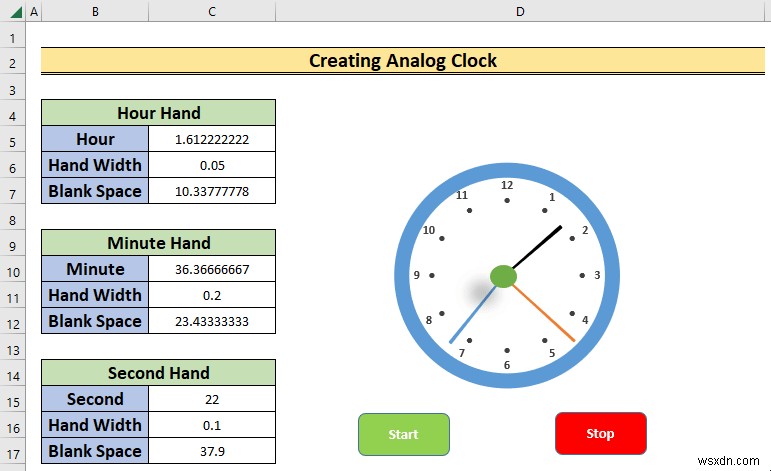

• Click the Start button to start the clock and the Stop button to stop the code.

Download the Practice Workbook

You can download the practice workbook here.
