Master Excel Left Join: 3 Proven Methods with Power Query and Table Tools

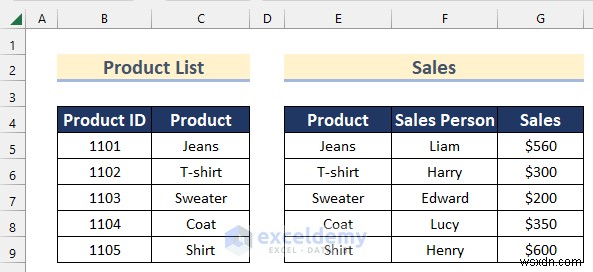

There are 2 datasets below. The first dataset contains Product ID and Name. The second one contains Product Name, salesperson’s name, and value of Sales.

Method 1 – Using the Power Query Editor to Perform Left Join in Excel

Step 1: Create Tables in Excel

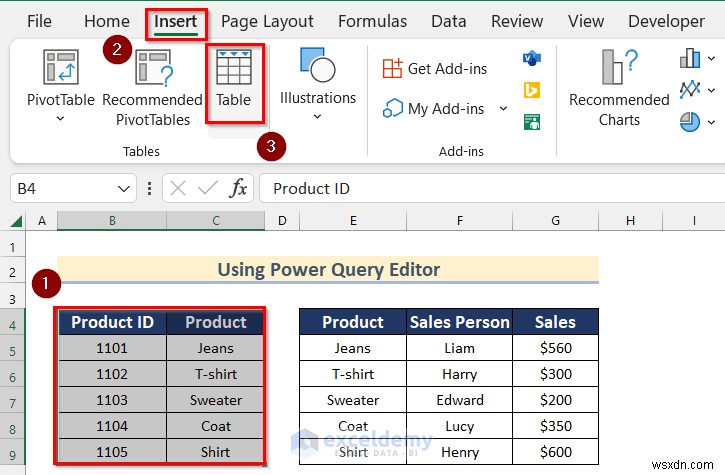

• Select B4:C9.
• Go to the Insert tab >> click  Table.

• In Create Table, the cell range is selected.
• Check My table has header option.
• Click  OK.

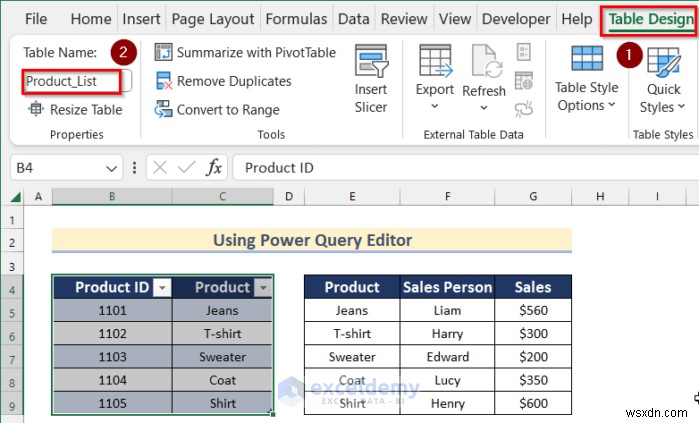

• Go Table Design >> name the table in Table Name. Here, Product_List.

• Create a table for E4:G9.

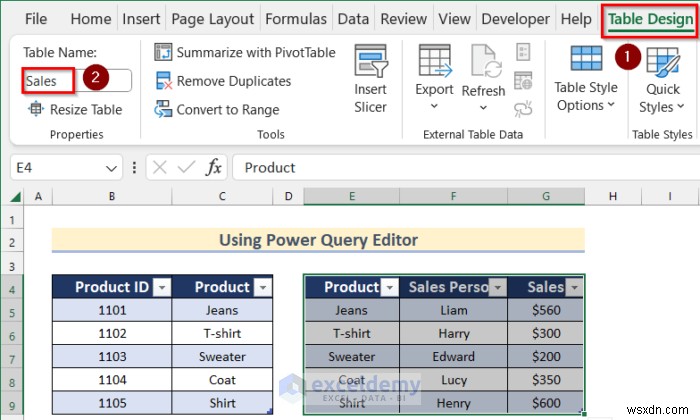

• In Table Design >>Name it Sales in Table Name.

Step 2: Create Connections in Power Query Editor

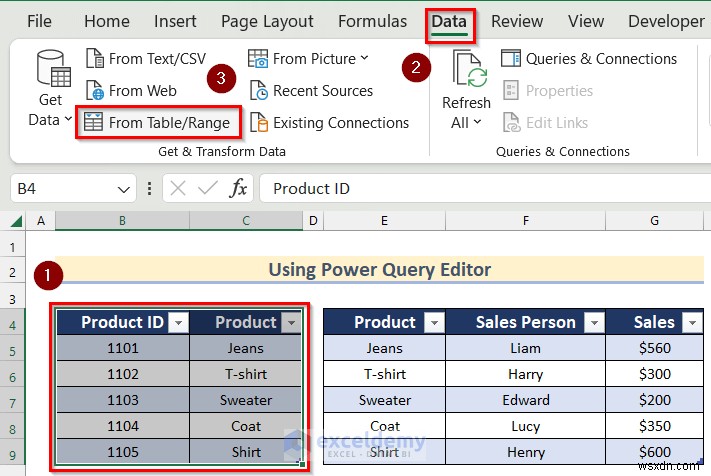

• Select the Product_List table.
• Go to the Data tab >> click From Table/Range.

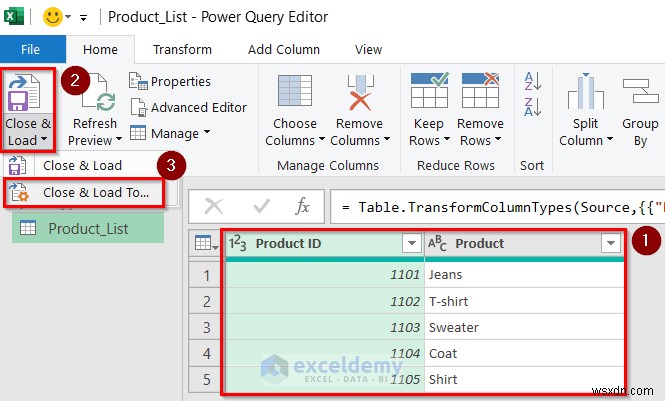

• The table will open in the Power Query Editor.
• Click  Close & Load >> select Close & Load To.

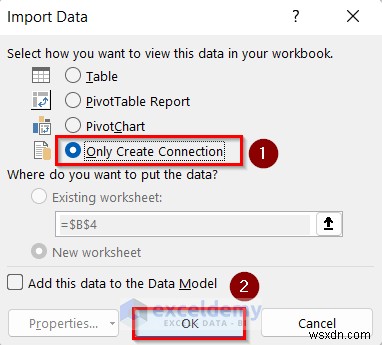

• In Import Data, select Only Create Connection.
• Click OK.
• Create a connection for the Sales Table.

Step 3:  Merge Tables

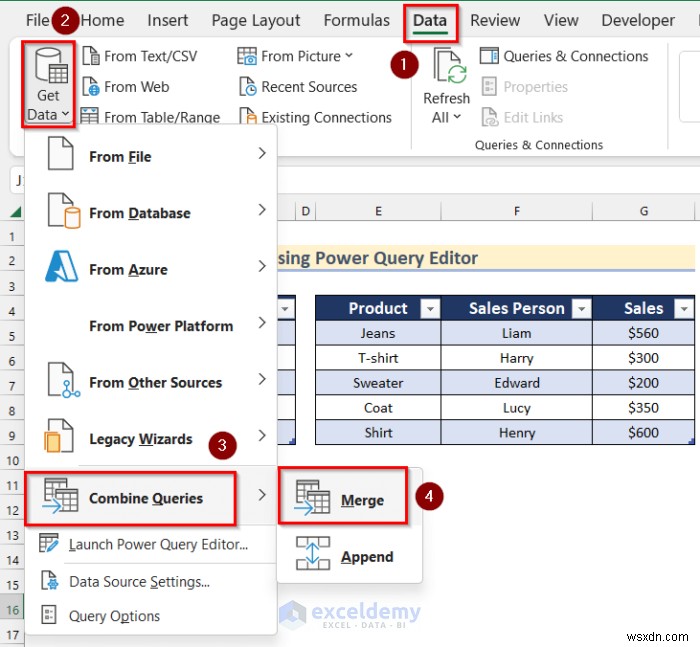

• Go to the Data tab >> click Get Data >> click Combine Queries >> select Merge.

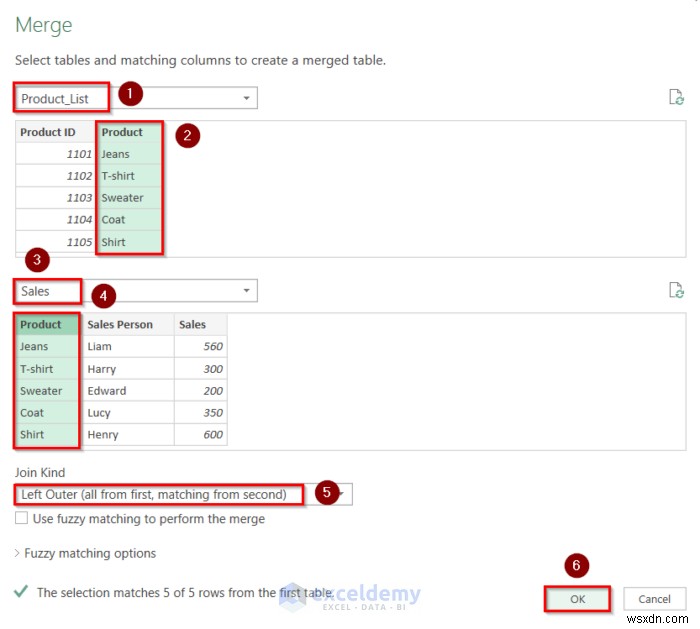

• In Merge, select the Product_List table and its Product column.
• Select the Sales table and its Product column.
• Select Left Outer as Join Kind.
• Click OK.

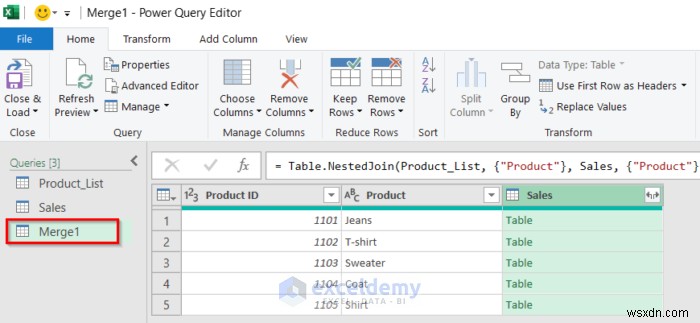

• Merge1 table will open in the Power Query Editor.

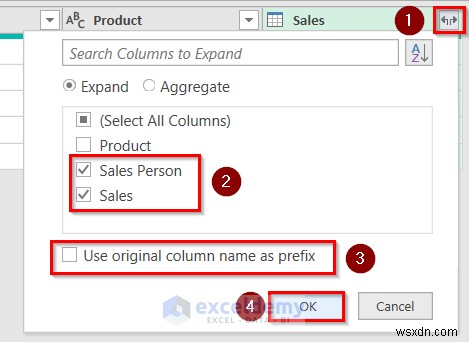

• Click the sign shown in the image below.
• Check Sales Person and Sales.
• Uncheck Use original column name as prefix.
• Click OK.

The two columns are merged.

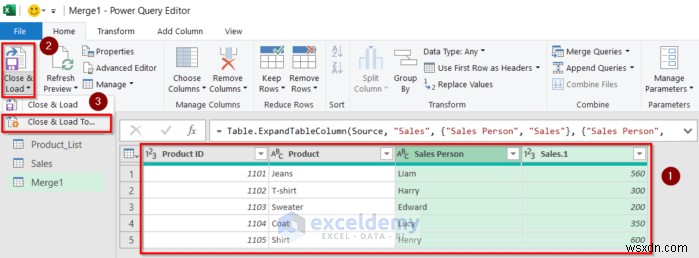

• Click Close & Load >> select Close & Load To.

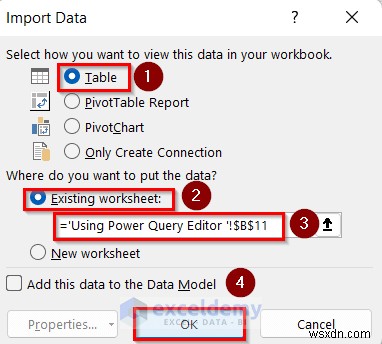

• In Import Data, select Table.
• Select Existing worksheet and enter B11 in the box.
• Click OK.

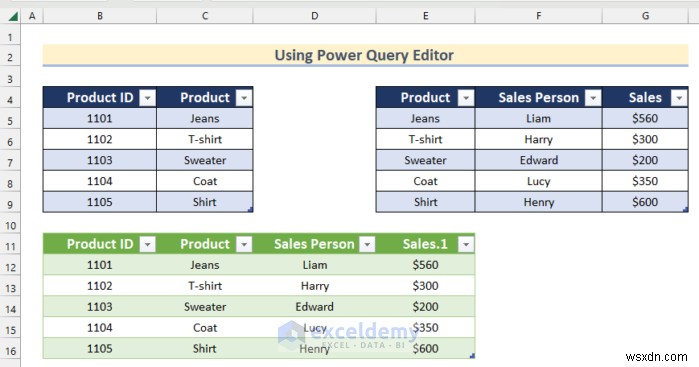

This is the output.

Read More: How to Combine Two Tables Using Power Query in Excel

Method 2 – Left Join Applying the Excel VLOOKUP Function

Steps:

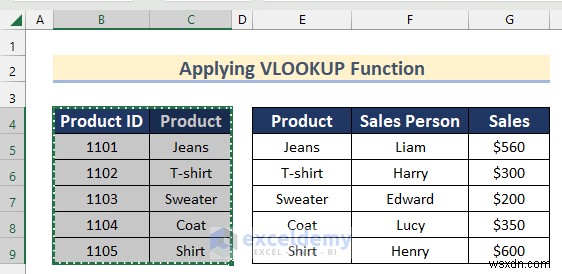

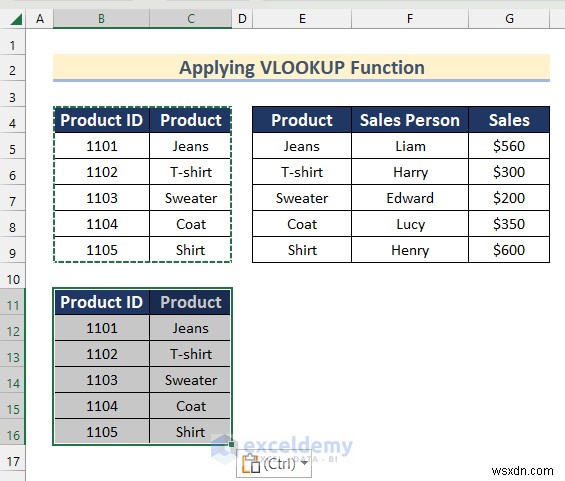

• Select B4:C9 and press Ctrl + C.

• Select B11 and press Ctrl + V.

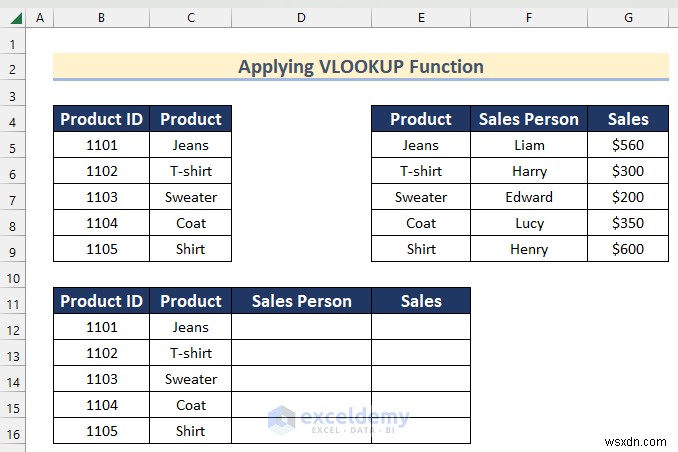

• Add the Sales Person and Sales columns to the copied dataset.

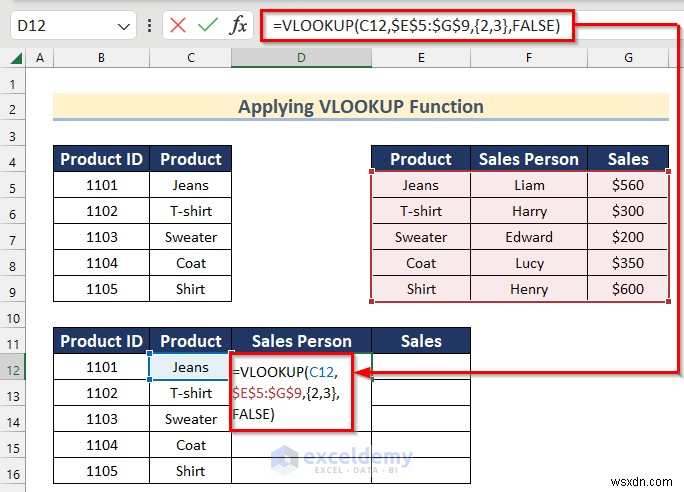

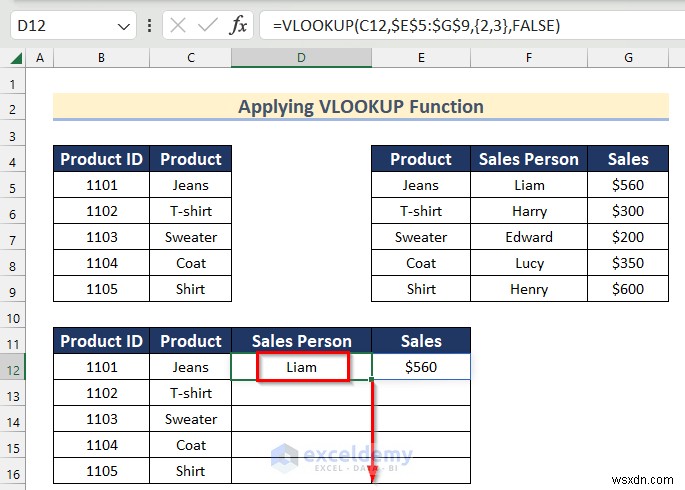

• Select D12 and enter the following formula.

=VLOOKUP(C12,$E$5:$G$9,{2,3},FALSE)

• Press Enter, and you will see the value of both Sales Person and Sales.
• Drag down the Fill Handle tool to autofill the formula.

In the VLOOKUP function, C12 is the lookup_value,  E5:G9 is the table_array, 2 & 3 is col_index_num, and FALSE is range_lookup.

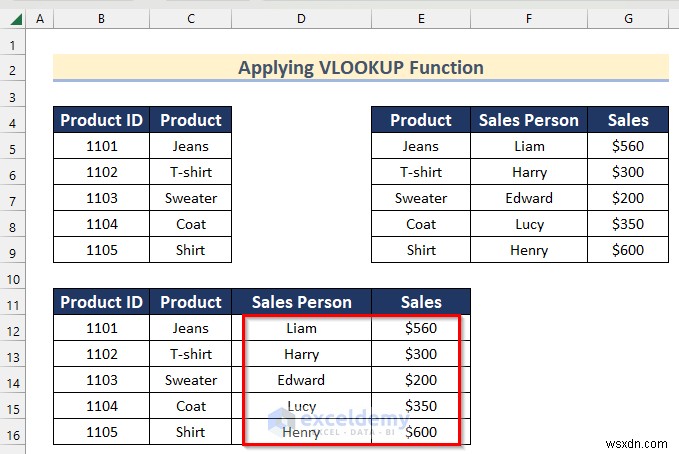

This is the output.

Read More: How to Perform Left Outer Join in Excel

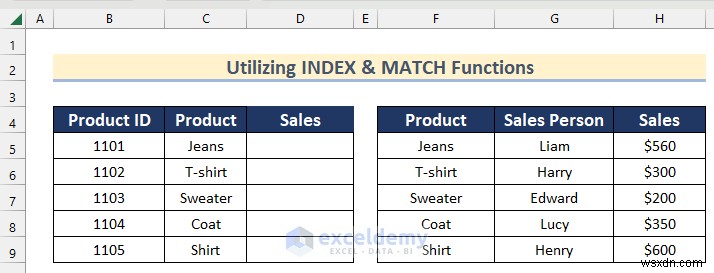

Method 3 – Utilize the INDEX & MATCH Functions to Left Join in Excel

Steps:

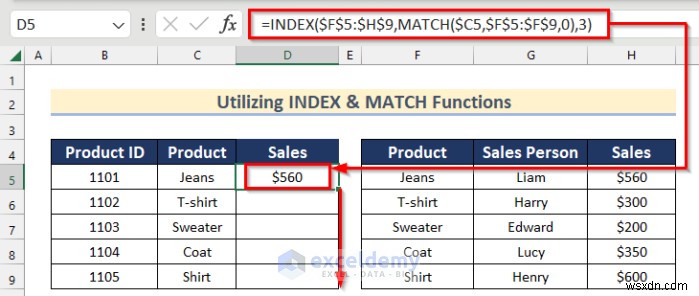

• Enter the following formula in D5.

=INDEX($F$5:$H$9,MATCH($C5,$F$5:$F$9,0),3)

• Press Enter and drag down the Fill Handle to autofill this formula.

 Formula Breakdown

• MATCH($C5,$F$5:$F$9,0): The MATCH function returns the location of a lookup value. The Output is {1}.
• INDEX($F$5:$H$9,MATCH($C5,$F$5:$F$9,0),3): The INDEX function returns a cell value of a lookup value. The formula becomes INDEX($F$5:$H$9,1,3). Here, the Output is {560}.

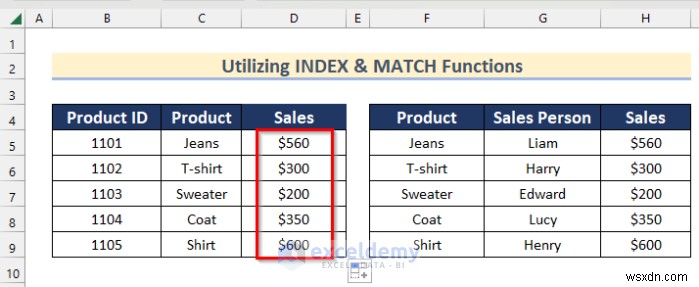

• The Sales column is added to the first table.

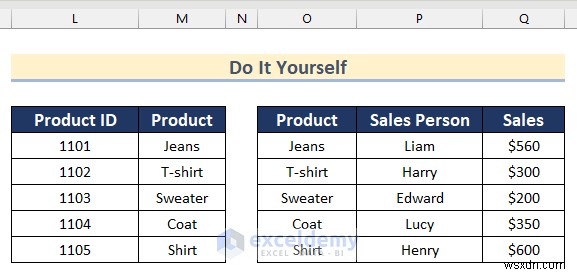

Practice Section

Practice here.

Download Practice Workbook

Download the workbook.
