Master Excel Inner Joins: Two Proven Methods for Accurate Data Matching

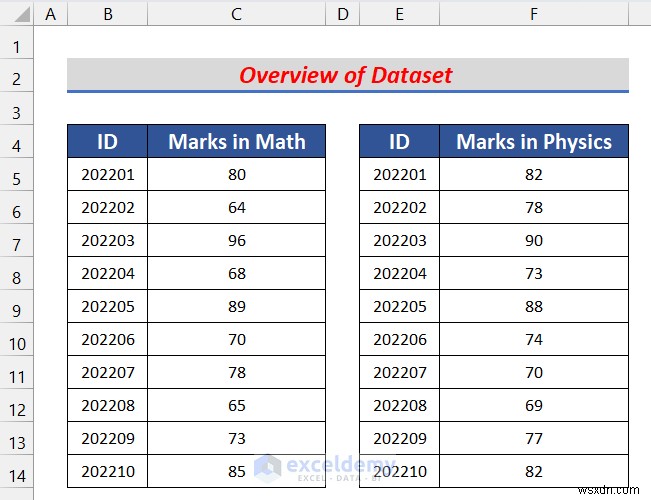

Consider two tables with examination marks in math and physics.

Method 1 – Applying the VLOOKUP Function to perform an Inner Join in Excel

Steps:

• In a new sheet, store all IDs in B5:B14.

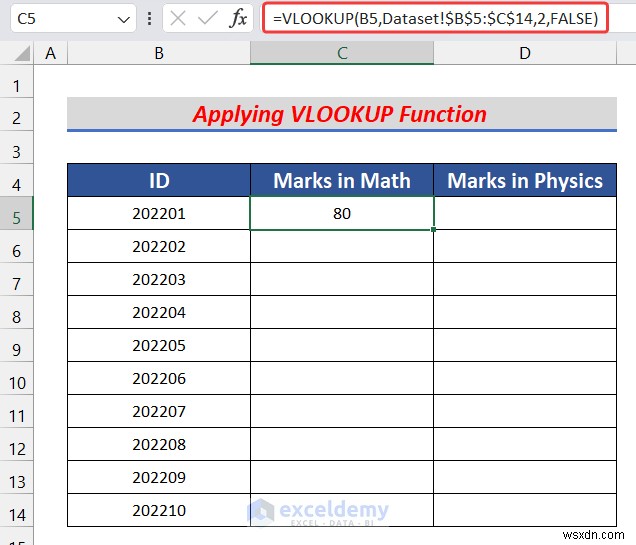

• Select C5 and enter the following formula:

=VLOOKUP(B5,Dataset!$B$5:$C$14,2,FALSE)

• Press Enter.

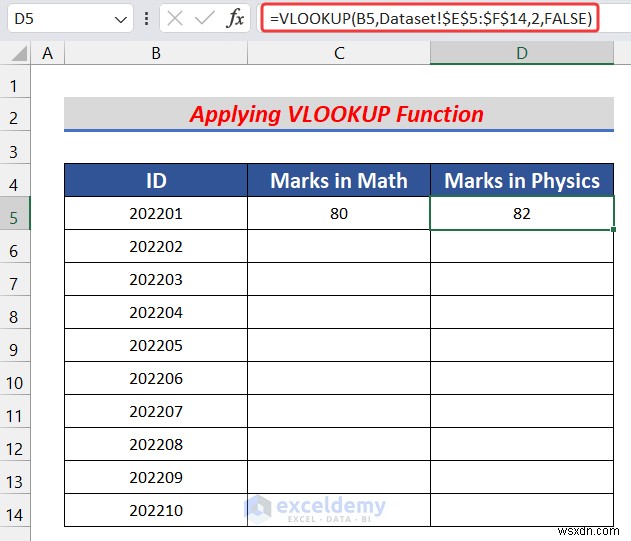

• Select D5 and use the following formula:

=VLOOKUP(B5,Dataset!$E$5:$F$14,2,FALSE)

• Press Enter.

• Select C5:D5 and drag down the Fill Handle to copy the formula to the rest of the cells.

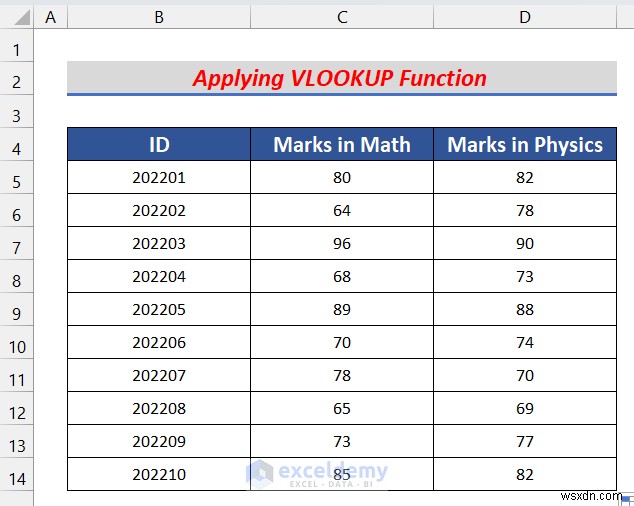

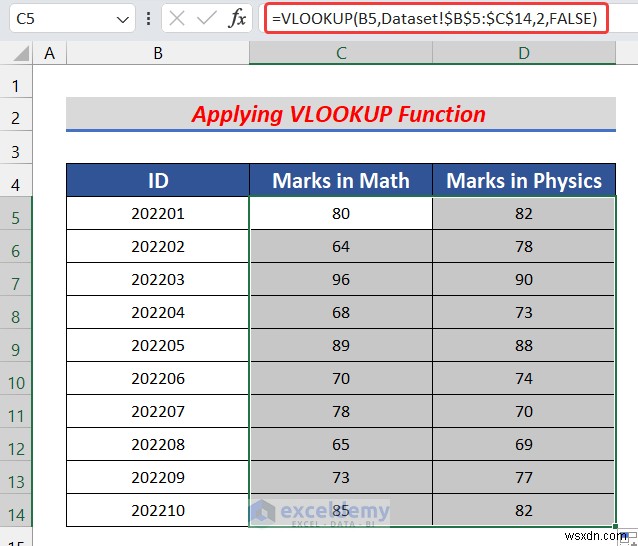

This is the output.

Method 2 – Using the Power Query Feature to perform an Inner Join in Excel

 Steps:

• Select B4:C14.

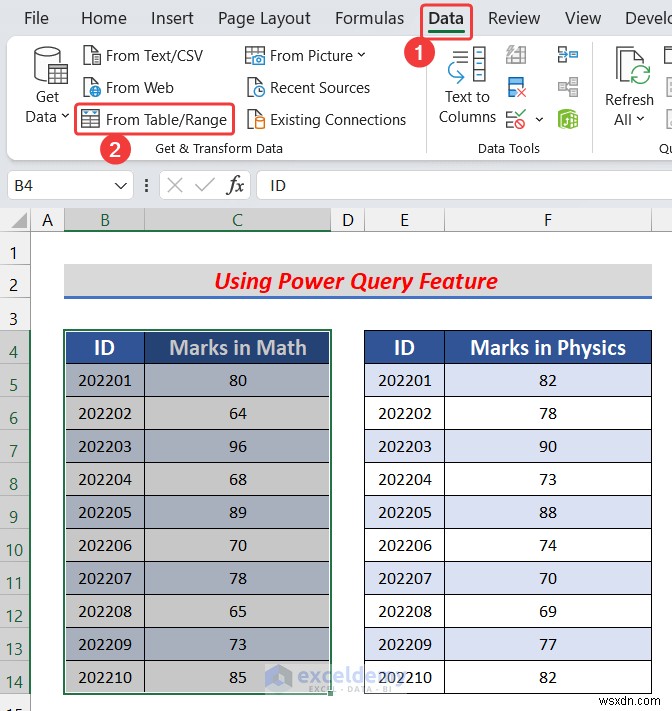

• In the Data tab, click From Table/Range in Get & Transform.

• In the Create Table dialog box, check My table has headers.
• Click OK.

• The Power Query Editor will be displayed.

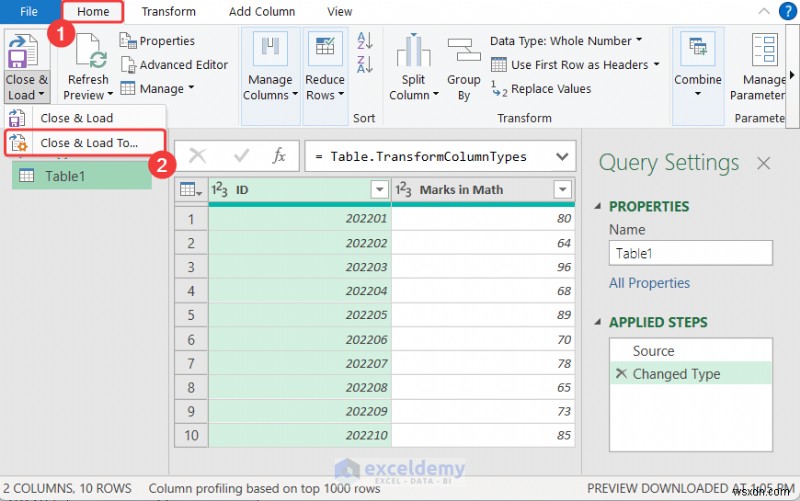

• In the Home tab, click Close & Load and choose Close & Load To.

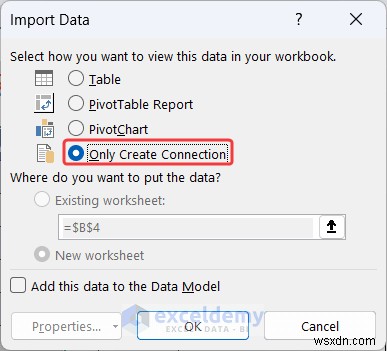

• In Import Data, choose  Only Create Connection.
• Click OK.

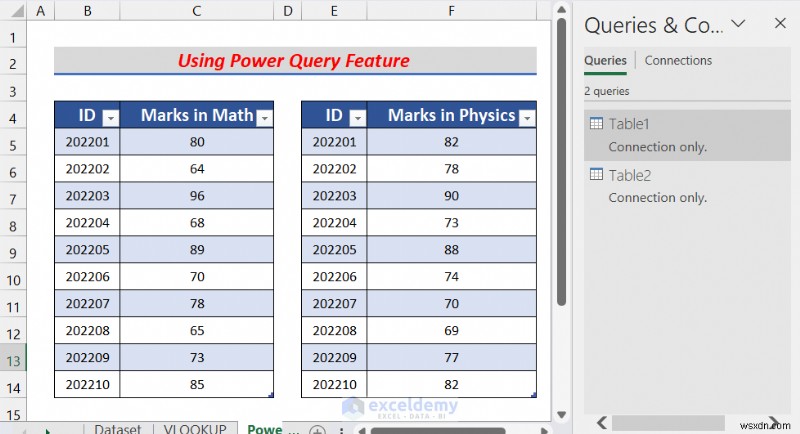

• Follow the same procedure for the second table to create a connection.

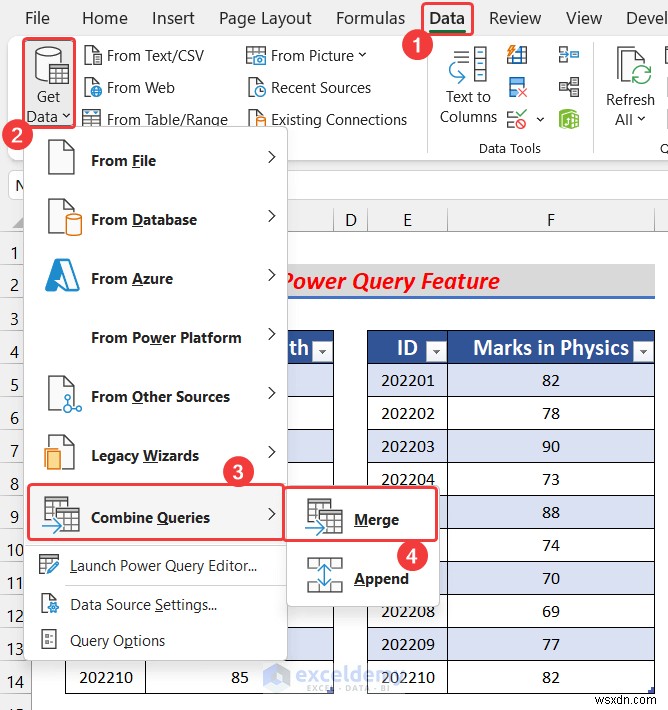

• In the Data tab, click Get Data and choose Combine Queries > Merge.

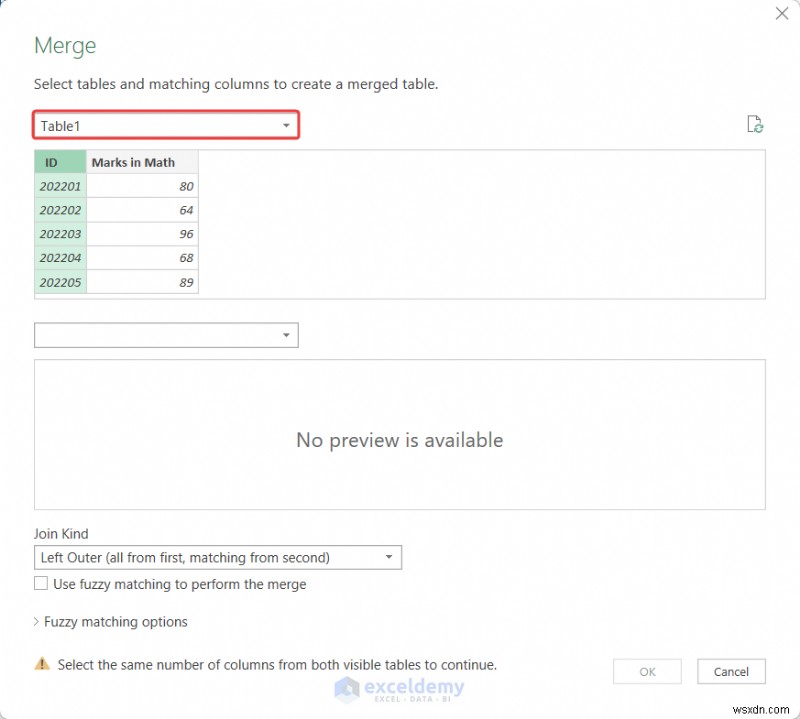

• In the Merge dialog box, click the drop-down arrow and select Table1.
• Click the ID column.

• Follow the same procedure in the lower field.
• In Join Kind, select Inner (only matching rows).
• Click OK.

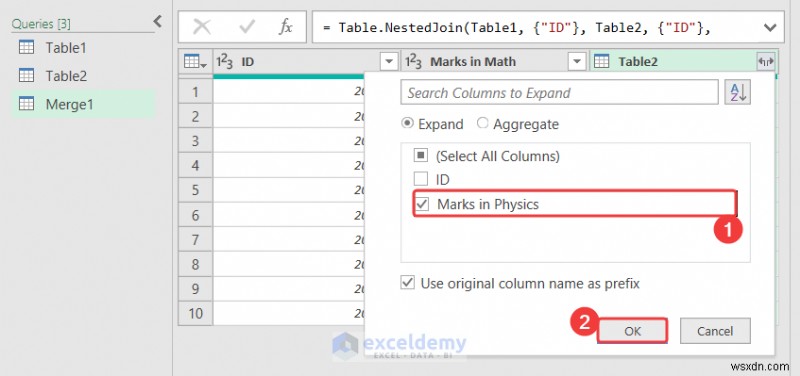

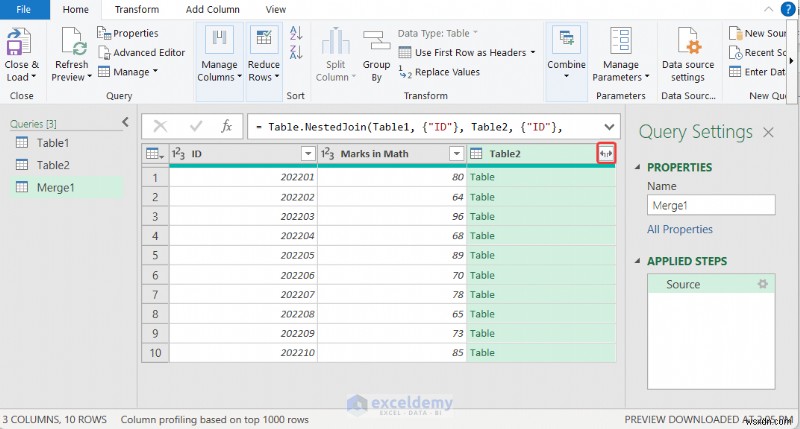

• In the Power Query Editor table, click the expand icon in the heading of Table2.

• Uncheck ID and click OK.

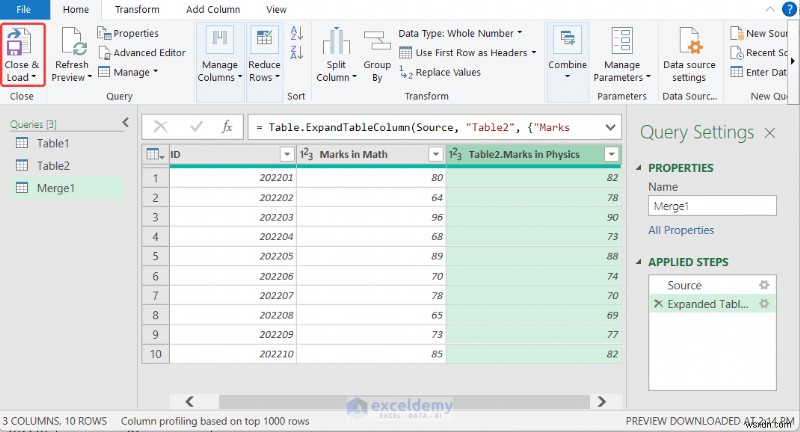

• In the Home tab, click Close & Load.

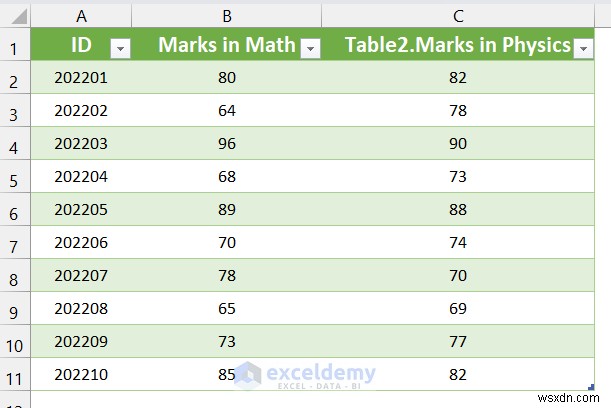

A new sheet will open, showing the joined table.

Read More: How to Combine Two Tables Using Power Query in Excel

How to perform Left Join in Excel

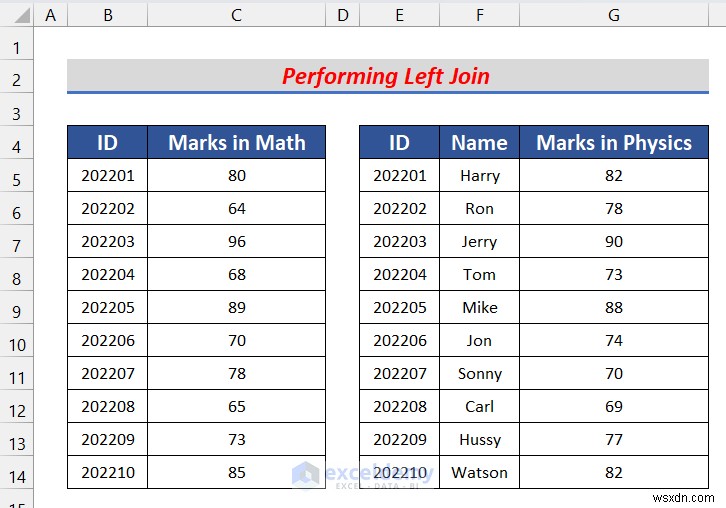

The dataset is in B5:G14.

Steps:

• In a new sheet, store the first table in B5:C14.

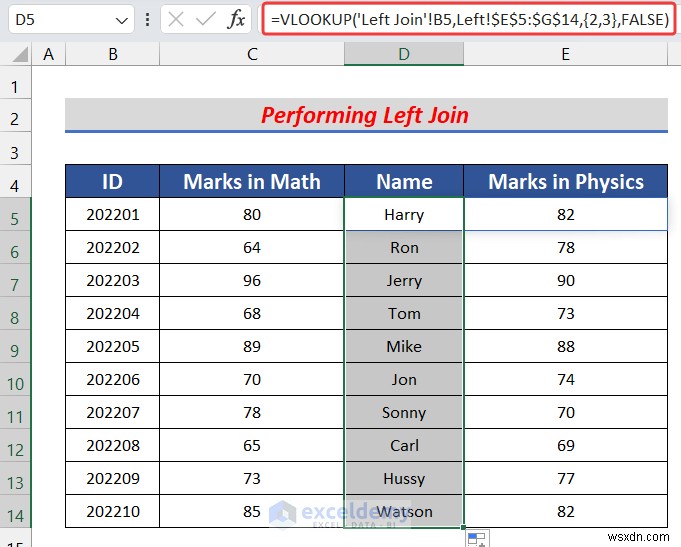

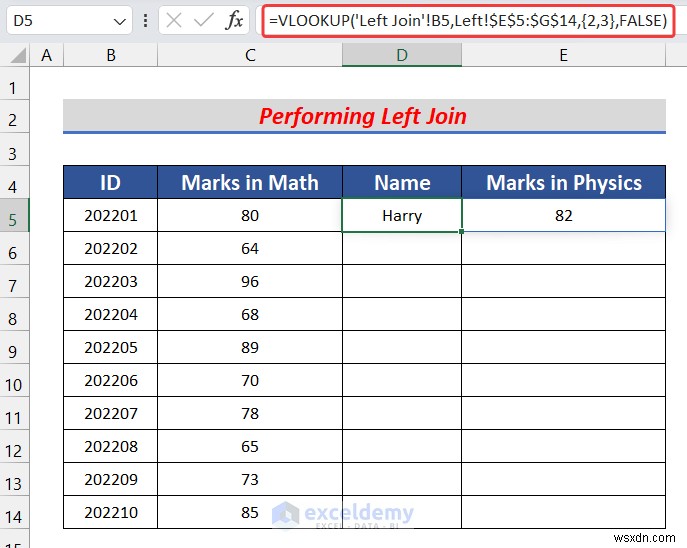

• Select D5 and use the following formula:

=VLOOKUP('Left Join'!B5,Left!$E$5:$G$14,{2,3},FALSE)

• Press Enter.

• Drag down the Fill Handle to see the result in the rest of the cells.

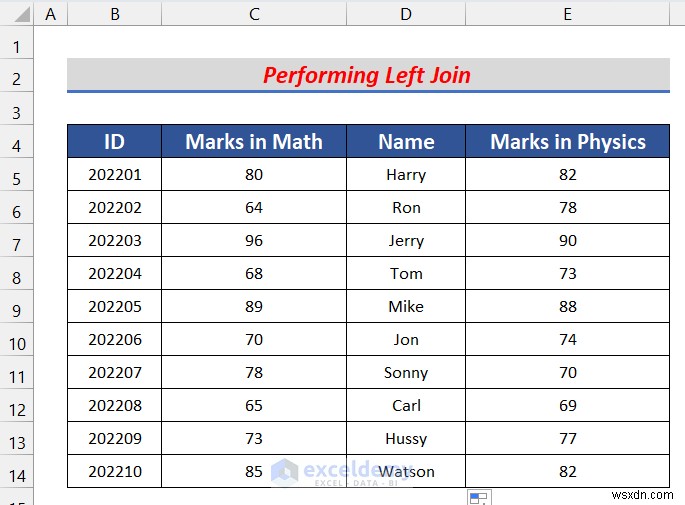

This is the output.

Download Practice Workbook

Download the practice workbook.
