Nexus 3 OSS is an Open Source artifact repository manager that can handle multiple formats like container images, Python PIP, Java jar, and many others.
Why have an on-premise artifact manager? There are many reasons for it:
Use your private infrastructure: You may have proprietary code that needs to be safeguarded.
Faster artifact download speeds: If you constantly download the same artifacts over the Internet, you can cache them on a central location, for the benefit of your multiple users across multiple servers by caching them.
Control what artifacts make it to your build chain: Centralize the location of the artifacts, ensure they are approved for usage, and also confirm than they do not contain malicious code.
Segregate who can have access to your artifacts: You may have more strict requirements on who can access some artifacts within your own organization.
In this article I will show you how you can download, install, and configure the OSS version of Nexus 3 using an Ansible playbook.
Nexus 3 will run on an Orange PI 5 computer with 8 GB or RAM, but this provisioning can be done on any machine with the minimum requirements. Part of the setup will consist of setting a proxy for PyPI.org, for the machines listed on my inventory file.
What you need to run the code from this tutorial
An Internet connection to download the source code for the Ansible playbook, Nexus, and PIP modules
Two or more Linux machines (I used Debian, Armbian and Fedora IOT), with at least 8 GB of RAM. My cluster has a mix of Raspberry PI 4 and an OrangePI 5.
Ansible controller will run on the Fedora machine, but any server can be the controller. Installation instructions for Ansible are easy to follow.
Playbook Organization
I divided the tasks in groups and the resulting playbook looks like this:
[josevnz@dmaf5 Nexus3OnOrangePI]$ tree -N ansible/
ansible/
├── inventories
│ └── home
│ └── hosts.yaml
├── roles
│ ├── clients
│ │ ├── tasks
│ │ │ └── main.yaml
│ │ └── templates
│ │ └── pip.conf.j2
│ └── nexus
│ ├── files
│ │ └── swagger.json
│ ├── tasks
│ │ ├── download.yaml
│ │ ├── install.yaml
│ │ ├── main.yaml
│ │ ├── post_install.yaml
│ │ ├── pre_install.yaml
│ │ ├── repositories.yaml
│ │ ├── third_party.yaml
│ │ └── user.yaml
│ └── templates
│ ├── logrotate.nexus3.j2
│ ├── nexus3.service.j2
│ ├── nexus.rc.j2
│ └── nexus.vmoptions.j2
├── site.yaml
├── vars
│ ├── clients.yaml
│ └── nexus.yaml
└── vault
├── nexus_password.enc
└── README.md
13 directories, 21 files
Now a little bit of explaining:
There are two roles: ‘nexus’ and ‘clients’. The nexus role is used to setup the artifact management software, while the client role sets up the pip settings on every machine.
Vars contains variables used on each role, separated by files to make their usage more clear
We have passwords, and we managed them using Ansible vault feature.
The file ‘site.yaml’ Orchestrates the role execution:
- hosts: all
tags: clients
vars_files:
- vars/clients.yaml
roles:
- clients
- hosts: nexus_server
tags: nexus
become_user: root
become: true
vars_files:
- vars/nexus.yaml
roles:
- nexus
Now let’s move on to see the universe where the playbook will be executed.
The Host Inventory
In my case it is quite simple – I have two main groups: ‘clients’ and the machine where the Nexus 3 server itself will run:
all:
children:
nexus_server:
hosts:
orangepi5.home:
home_lab:
hosts:
dmaf5.home:
raspberrypi.home:
orangepi5.home:
The next important task is to download and configure Nexus 3.
How to Install Nexus 3
The file main.yaml describes the order and purpose of each installation task for the Nexus role:
# Tasks listed here are related to the remote Nexus 3 server
# Included tasks are called in order
---
- include_tasks: third_party.yaml
- include_tasks: pre_install.yaml
- include_tasks: download.yaml
- include_tasks: install.yaml
- include_tasks: post_install.yaml
- include_tasks: user.yaml
- include_tasks: repositories.yaml
Let’s see first what I like to call the “core tasks”:
third_party.yaml: In here we install the OpenJDK8 (Nexus 3 is written in Java) and logrotate to take care of the stale logs.
pre_install.yaml: A lot happens here, like creating required directories for nexus, dedicated non-privileged user that will run the process.
download.yaml: As the name says, we get a fresh version of the Nexus 3 OSS software and make sure it has the right checksum. We don’t want to install malware from the Internet.
Then come the tasks that fall into the “customized installation group”:
install.yaml: Unpack the software, prepare the systemd unit to start it automatically, setup JVM settings for Nexus, and deploy the logrotate configuration.
post_install.yaml: Exciting stuff happens here – the software is installed, and we run it for the first time. We also change the default password using the REST API, so we can move to the customization stage.
user.yaml: Here we prepare to provide our end users with proper access to the services offered by Nexus. We do this using a combination of the REST-API and Ansible client code:
# https://help.sonatype.com/repomanager3/installation-and-upgrades/post-install-checklist
# https://help.sonatype.com/repomanager3/integrations/rest-and-integration-api
---
- name: Enable anonymous user
tags: anonymous
ansible.builtin.uri:
user: ""
password: ""
url: "/v1/security/anonymous"
method: PUT
body_format: raw
status_code: [ 200, 202, 204 ]
headers:
Content-Type: application/json
body: |-
{ "enabled" : true, "userId" : "anonymous", "realmName" : "NexusAuthorizingRealm" }
force_basic_auth: true
return_content: true
any_errors_fatal: true
- name: Enable Docker security realm
tags: docker_realm
ansible.builtin.uri:
user: ""
password: ""
url: "/v1/security/realms/active"
method: PUT
body_format: raw
status_code: [ 200, 202, 204 ]
headers:
Content-Type: application/json
body: |-
[ "NexusAuthenticatingRealm", "NexusAuthorizingRealm", "DockerToken" ]
force_basic_auth: true
return_content: true
any_errors_fatal: true
The logic is easy to follow, by using the ‘PUT’ http method you can tell is a modification operation (meaning existing roles and users already exist). Error detection is done by getting the HTTP codes returned by Nexus.
Next step is to prepare our local PyPi proxy. This is a multistep task and will be described in detail next.
How to Set Up PyPI Proxy on Nexus 3
The last file on the Nexus 3 role is ‘repositories.yaml’. In here we go through the following steps:
Check if the proxy was already setup (GET or read only operation)
If it doesn’t exist, create a new one (POST method with JSON payload with details to create whole new repository)
Notice than this playbook doesn’t offer the option to update repository settings. It is possible to do with the REST API, but I will leave that as an exercise to the reader.
The tasks to prepare the PyPi proxy are shown below:
# Create proxy for repositories
# https://help.sonatype.com/repomanager3/integrations/rest-and-integration-api
# PyPi: https://pip.pypa.io/en/stable/user_guide/
---
- name: Check if the PyPi proxy exists
tags: pypi_proxy_exists
ansible.builtin.uri:
user: ""
password: ""
url: "/v1/repositories/pypi/proxy/python_proxy"
method: GET
body_format: raw
status_code: [ 200, 202, 204, 404 ]
headers:
Content-Type: application/json
force_basic_auth: true
return_content: true
any_errors_fatal: true
register: python_local
- name: Create PyPI proxy
tags: pypi_proxy_create
ansible.builtin.uri:
user: ""
password: ""
url: "/v1/repositories/pypi/proxy"
method: POST
body_format: raw
status_code: [ 201 ]
headers:
Content-Type: application/json
body: |-
{
"name": "python_proxy",
"online": true,
"storage": {
"blobStoreName": "default",
"strictContentTypeValidation": true
},
"proxy": {
"remoteUrl": "https://pypi.org/",
"contentMaxAge": -1,
"metadataMaxAge": 1440
},
"negativeCache": {
"enabled": true,
"timeToLive": 1440
},
"httpClient": {
"blocked": false,
"autoBlock": true,
"connection": {
"retries": 0,
"timeout": 60,
"enableCircularRedirects": false,
"enableCookies": true,
"useTrustStore": false
}
}
}
force_basic_auth: true
return_content: true
any_errors_fatal: true
when: python_local.status == 404
We are almost there. Now we need to tell our PyPi clients than we should use our local Nexus and not the direct PyPi site to get our Python libraries.
How to Set the Clients
The clients role is much simpler and only requires deploying a template for pip.conf with enough information to force the search on our new repository:
# Tasks here are meant to be used on our clients user
---
- name: Create installation directory for pip.conf
tags: pip_basedir
ansible.builtin.file:
state: directory
path: ""
owner: ""
group: ""
mode: "u+rwx,go-rwx"
- name: Copy pip.conf file
tags: pip_copy
ansible.builtin.template:
src: pip.conf.j2
dest: "/pip.conf"
owner: ""
group: ""
mode: u=rxw,g=r,o=r
The resulting file gets deployed on ‘~/.config/pip/pip.conf’ of every machine:
# https://pip.pypa.io/en/stable/topics/configuration/
[global]
timeout = 60
[install]
index = http://orangepi5.home:8081/repository/python_proxy/pypi
index-url = http://orangepi5.home:8081/repository/python_proxy/simple/
trusted-host = orangepi5.home
The file above shows an example of how the final version of the file will look once deployed on my cluster (yours will be different with the resolved URL).
It is time now to run the whole playbook and see what it looks like.
How to Run the Playbook
To run the playbook, we pass a few arguments:
The location of our host inventory
The location of the encrypted password file and a master file containing the master password to unlock the contents of the protected file
And finally the location of our main playbook file
cd ansible
ansible-playbook --inventory inventories --extra-vars @vault/nexus_password.enc --vault-password-file $HOME/vault/ansible_vault_pass site.yaml
How to test the new PyPI proxy
To test our new proxy, we will install Python Rich using pip and a virtual environment.
josevnz@orangepi5:~$ python3 -m venv ~/virtualenv/rich
(rich) josevnz@orangepi5:~$ . ~/virtualenv/rich/bin/activate
(rich) josevnz@orangepi5:~$ pip install rich
Looking in indexes: http://orangepi5.home:8081/repository/python_proxy/simple/
Collecting rich
Downloading http://orangepi5.home:8081/repository/python_proxy/packages/rich/13.3.4/rich-13.3.4-py3-none-any.whl (238 kB)
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 238.7/238.7 KB 14.8 MB/s eta 0:00:00
Collecting pygments<3.0.0,>=2.13.0
Downloading http://orangepi5.home:8081/repository/python_proxy/packages/pygments/2.15.0/Pygments-2.15.0-py3-none-any.whl (1.1 MB)
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 1.1/1.1 MB 23.8 MB/s eta 0:00:00
Collecting markdown-it-py<3.0.0,>=2.2.0
Downloading http://orangepi5.home:8081/repository/python_proxy/packages/markdown-it-py/2.2.0/markdown_it_py-2.2.0-py3-none-any.whl (84 kB)
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 84.5/84.5 KB 6.9 MB/s eta 0:00:00
Collecting mdurl~=0.1
Downloading http://orangepi5.home:8081/repository/python_proxy/packages/mdurl/0.1.2/mdurl-0.1.2-py3-none-any.whl (10.0 kB)
Installing collected packages: pygments, mdurl, markdown-it-py, rich
Successfully installed markdown-it-py-2.2.0 mdurl-0.1.2 pygments-2.15.0 rich-13.3.4

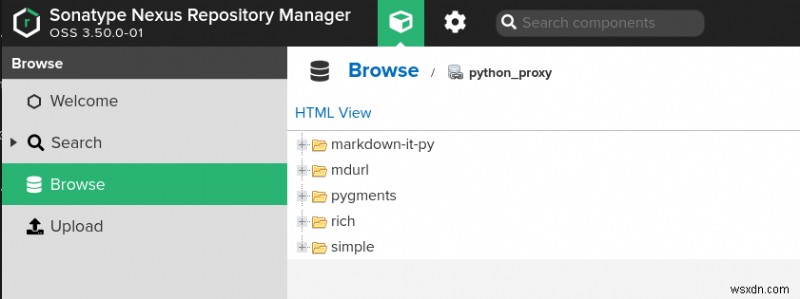

And then we can confirm than the cache was indeed used by seeing the new artifacts on the new repository:
See the PyPi artifacts
Let’s see a demo of the client in action, installing something else:
Further Customization Using the REST-API
Every Nexus installation allows you to download a JSON file that describes the API supported by the server. For example, in my server you can get a copy like this from my orangepi5.home server:
curl --fail --remote-name http://orangepi5.home:8081/service/rest/swagger.json

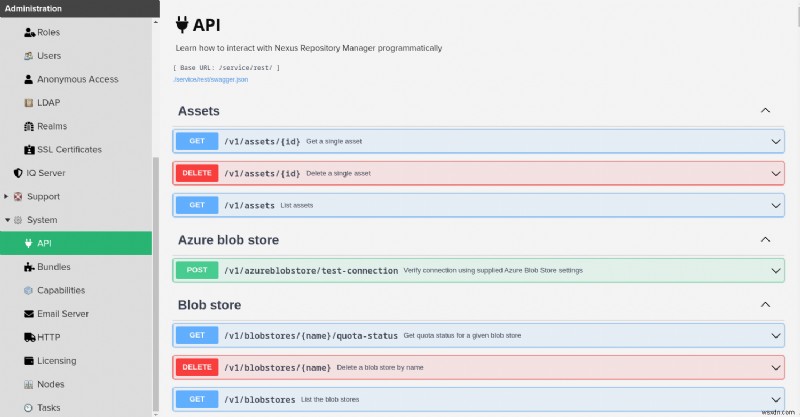

Also, the UI allows you to try the other REST API endpoints to customize your installation.
REST API testing
Conclusion
I recommend spending some time and reading the Nexus 3 book to get yourself familiar with the features this tool can offer.
The community prepared Debian and RPM installers, if you need this kind of setup as opposed to using Ansible.
Nexus 3 has lots of configurable settings. We covered only the surface here. While preparing this article I found 'ThoTeam Nexus3-oss repository' with a very complete and up-to-date playbook, but it was way more complex than anything I required for my home lab.
Archiva is another Open Source artifact manager, it is more limited in functionality but also simpler to setup.
There is a post-installation checklist with some tasks I did not need to complete for my home lab. Please check it out to make sure your setup is complete.
